首页 > 产品中心 > 行业专用电源 > 电力专用

电力专用

产品选型 >>
产品型号 图片 功率(W) 输入电压(Vac/Vdc) 输出电压(Vdc) 效率(%) 隔离电压(Vac/Vdc) 封装尺寸(mm) 认证/标准 规格书 3D图 样品申请
NW1-XXDXXDR3 系列
-/4.75-5.25 -/1500 27.50*9.50*12.00
NW1-24D15DR3 1 -/22.8-25.2 83 -/1500 27.50*9.50*12.00
NW1-24D12DR3 1 -/22.8-25.2 82 -/1500 27.50*9.50*12.00
NW1-24D05DR3 1 -/22.8-25.2 80 -/1500 27.50*9.50*12.00
NW1-12D15DR3 1 -/11.4-12.6 83 -/1500 27.50*9.50*12.00
NW1-12D12DR3 1 -/11.4-12.6 81 -/1500 27.50*9.50*12.00
NW1-12D09DR3 1 -/11.4-12.6 83 -/1500 27.50*9.50*12.00
NW1-12D05DR3 1 -/11.4-12.6 80 -/1500 27.50*9.50*12.00
NW1-05D15DR3 1 -/4.75-5.25 80 -/1500 27.50*9.50*12.00
NW1-05D12DR3 1 -/4.75-5.25 82 -/1500 27.50*9.50*12.00
NW1-05D09DR3 1 -/4.75-5.25 80 -/1500 27.50*9.50*12.00
NW1-05D05DR3 1 -/4.75-5.25 81 -/1500 27.50*9.50*12.00
FN1-XXSXXAN 系列
-/2.97-26.4 -/1500 11.5*6.0*10.0
FN1-09S09AN 1 -/8.1-9.9 84 -/1500 11.5*6.0*10.0 -
FN1-15S24AN 1 -/13.5-16.5 85 -/1500 11.5*6.0*10.0 -
FN1-15S12AN 1 -/13.5-16.5 86 -/1500 11.5*6.0*10.0 -
FN1-05S24AN 1 -/4.5-5.5 84 -/1500 11.5*6.0*10.0 -
FN1-05S15AN 1 -/4.5-5.5 85 -/1500 11.5*6.0*10.0 CE
FN1-3V3S24AN 1 -/2.97-3.63 83 -/1500 11.5*6.0*10.0 -
FN1-3V3S15AN 1 -/2.97-3.63 83 -/1500 11.5*6.0*10.0 -
FN1-24S24AN 1 -/21.6-26.4 85 -/1500 11.5*6.0*10.0 -
FN1-24S15AN 1 -/21.6-26.4 85 -/1500 11.5*6.0*10.0 -
FN1-24S12AN 1 -/21.6-26.4 86 -/1500 11.5*6.0*10.0 -
FN1-24S09AN 1 -/21.6-26.4 85 -/1500 11.5* 6.0*10.0 -
FN1-24S05AN 1 -/21.6-26.4 84 -/1500 11.5*6.0*10.0 RoHS
FN1-24S3V3AN 1 -/21.6-26.4 77 -/1500 11.5*6.0*10.0 -
FN1-15S15AN 1 -/13.5-16.5 85 -/1500 11.5*6.0*10.0 -
FN1-15S05AN 1 -/13.5-16.5 85 -/1500 11.5*6.0*10.0 -
FN1-12S24AN 1 -/10.8-13.2 85 -/1500 11.5*6.0*10.0 -
FN1-12S15AN 1 -/10.8-13.2 86 -/1500 11.5*6.0*10.0 -
FN1-12S12AN 1 -/10.8-13.2 86 -/1500 11.5*6.0*10.0 CE,CB,UL
FN1-12S09AN 1 -/10.8-13.2 86 -/1500 11.5*6.0*10.0 -
FN1-12S05AN 1 -/10.8-13.2 86 -/1500 11.5*6.0*10.0 CB,UL,RoHS
FN1-12S3V3AN 1 -/10.8-13.2 77 -/1500 11.5*6.0*10.0 -
FN1-05S12AN 1 -/4.5-5.5 85 -/1500 11.5*6.0*10.0 CE
FN1-05S09AN 1 -/4.5-5.5 85 -/1500 11.5*6.0*10.0 -
FN1-05S05AN 1 -/4.5-5.5 85 -/1500 11.5*6.0*10.0 UL,RoHS
FN1-05S3V3AN 1 -/4.5-5.5 80 -/1500 11.5*6.0*10.0 -
FN1-3V3S12AN 1 -/2.97-3.63 85 -/1500 11.5*6.0*10.0 -
FN1-3V3S05AN 1 -/2.97-3.63 83 -/1500 11.5*6.0*10.0 -
FN1-3V3S3V3AN 1 -/2.97-3.63 76 -/1500 11.5*6.0*10.0 -
FN1-XXXXXB3 系列
-/3-26.4 -/3000 19.5*6.0*10.0
FN1-24S24B3 1 -/21.6-26.4 80 -/3000 19.5*6.0*10.0 -
FN1-24D15B3 1 -/21.6-26.4 83 -/3000 19.5*6.0*10.0 -
FN1-24D12B3 1 -/21.6-26.4 83 -/3000 19.5*6.0*10.0 -
FN1-15D15B3 1 -/13.5-16.5 83 -/3000 19.5*6.0*10.0 -
FN1-12D24B3 1 -/10.8-13.2 77 -/3000 19.5*6.0*10.0 -
FN1-12D12B3 1 -/10.8-13.2 82 -/3000 19.5*6.0*10.0 -
FN1-12D09B3 1 -/10.8-13.2 82 -/3000 19.5*6.0*10.0 -
FN1-12D05B3 1 -/10.8-13.2 81 -/3000 19.5*6.0*10.0 -
FN1-05D24B3 1 -/4.5-5.5 77 -/3000 19.5*6.0*10.0 -
FN1-05D15B3 1 -/4.5-5.5 81 -/3000 19.5*6.0*10.0 -
FN1-05D12B3 1 -/4.5-5.5 80 -/3000 19.5*6.0*10.0 -
FN1-05D09B3 1 -/4.5-5.5 79 -/3000 19.5*6.0*10.0 -
FN1-05D05B3 1 -/4.5-5.5 77 -/3000 19.5*6.0*10.0 -
FN1-24S15B3 1 -/21.6-26.4 80 -/3000 19.5*6.0*10.0 -
FN1-24S12B3 1 -/21.6-26.4 83 -/3000 19.5*6.0*10.0 -
FN1-24S09B3 1 -/21.6-26.4 77 -/3000 19.5*6.0*10.0 -
FN1-24S05B3 1 -/21.6-26.4 79 -/3000 19.5*6.0*10.0 -
FN1-15S15B3 1 -/13.5-16.5 76 -/3000 19.5*6.0*10.0 -
FN1-15S12B3 1 -/13.5-16.5 83 -/3000 19.5*6.0*10.0 -
FN1-15S05B3 1 -/13.5-16.5 76 -/3000 19.5*6.0*10.0 -
FN1-12S24B3 1 -/10.8-13.2 82 -/3000 19.5*6.0*10.0 -
FN1-12S15B3 1 -/10.8-13.2 83 -/3000 19.5*6.0*10.0 -
FN1-12S12B3 1 -/10.8-13.2 81 -/3000 19.5*6.0*10.0 -
FN1-12S09B3 1 -/10.8-13.2 81 -/3000 19.5*6.0*10.0 -
FN1-12S05B3 1 -/10.8-13.2 77 -/3000 19.5*6.0*10.0 -
FN1-12S3V3B3 1 -/10.8-13.2 80 -/3000 19.5*6.0*10.0 -
FN1-05S24B3 1 -/4.5-5.5 79 -/3000 19.5*6.0*10.0 -
FN1-05S15B3 1 -/4.5-5.5 78 -/3000 19.5*6.0*10.0 -
FN1-05S12B3 1 -/4.5-5.5 80 -/3000 19.5*6.0*10.0 -
FN1-05S09B3 1 -/4.5-5.5 77 -/3000 19.5*6.0*10.0 -
FN1-05S05B3 1 -/4.5-5.5 77 -/3000 19.5*6.0*10.0 -
FN1-05S3V3B3 1 -/4.5-5.5 74 -/3000 19.5*6.0*10.0 -
FN1-3V3S05B3 1 -/3-3.6 64 -/3000 19.5*6.0*10.0 -
FN1-3V3S3V3B3 1 -/3-3.6 65 -/3000 19.5*6.0*10.0 -
FN2-XXXXXC 系列
-/4.5-26.4 -/1500 19.5*7.0*10.0
FN2-24D15C 2 -/21.6-26.4 86 -/1500 19.5*7.0*10.0 -
FN2-24D12C 2 -/21.6-26.4 86 -/1500 19.5*7.0*10.0 -
FN2-24D09C 2 -/21.6-26.4 85 -/1500 19.5*7.0*10.0 -
FN2-24D05C 2 -/21.6-26.4 77 -/1500 19.5*7.0*10.0 -
FN2-12D12C 2 -/10.8-13.2 79 -/1500 19.5*7.0*10.0 -
FN2-12D09C 2 -/10.8-13.2 79 -/1500 19.5*7.0*10.0 -
FN2-12D05C 2 -/10.8-13.2 78 -/1500 19.5*7.0*10.0 -
FN2-05D15C 2 -/4.5-5.5 79 -/1500 19.5*7.0*10.0 -
FN2-05D12C 2 -/4.5-5.5 78 -/1500 19.5*7.0*10.0 -
FN2-05D09C 2 -/4.5-5.5 78 -/1500 19.5*7.0*10.0 -
FN2-05D05C 2 -/4.5-5.5 77 -/1500 19.5*7.0*10.0 -
FN2-24S24C 2 -/21.6-26.4 79 -/1500 19.5*7.0*10.0 -
FN2-24S15C 2 -/21.6-26.4 79 -/1500 19.5*7.0*10.0 -
FN2-24S12C 2 -/21.6-26.4 79 -/1500 19.5*7.0*10.0 -
FN2-24S09C 2 -/21.6-26.4 78 -/1500 19.5*7.0*10.0 -
FN2-24S3V3C 2 -/21.6-26.4 74 -/1500 19.5*7.0*10.0 -
FN2-15S24C 2 -/13.5-16.5 79 -/1500 19.5*7.0*10.0 -
FN2-15S15C 2 -/13.5-16.5 78 -/1500 19.5*7.0*10.0 -
FN2-15S12C 2 -/13.5-16.5 78 -/1500 19.5*7.0*10.0 -
FN2-15S09C 2 -/13.5-16.5 77 -/1500 19.5*7.0*10.0 -
FN2-15S05C 2 -/13.5-16.5 77 -/1500 19.5*7.0*10.0 -
FN2-15S3V3C 2 -/13.5-16.5 75 -/1500 19.5*7.0*10.0 -
FN2-12S24C 2 -/10.8-13.2 86 -/1500 19.5*7.0*10.0 -
FN2-12S15C 2 -/10.8-13.2 77 -/1500 19.5*7.0*10.0 -
FN2-12S12C 2 -/10.8-13.2 86 -/1500 19.5*7.0*10.0 -
FN2-12S09C 2 -/10.8-13.2 79 -/1500 19.5*7.0*10.0 -
FN2-12S05C 2 -/10.8-13.2 82 -/1500 19.5*7.0*10.0 -
FN2-12S3V3C 2 -/10.8-13.2 75 -/1500 19.5*7.0*10.0 -
FN2-05S24C 2 -/4.5-5.5 79 -/1500 19.5*7.0*10.0 -
FN2-05S15C 2 -/4.5-5.5 79 -/1500 19.5*7.0*10.0 -
FN2-05S12C 2 -/4.5-5.5 78 -/1500 19.5*7.0*10.0 -
FN2-05S09C 2 -/4.5-5.5 78 -/1500 19.5*7.0*10.0 -
FN2-05S05C 2 -/4.5-5.5 79 -/1500 19.5*7.0*10.0 -
FN2-05S3V3C 2 -/4.5-5.5 75 -/1500 19.5*7.0*10.0 -
NN2-XXSXXANT 系列
-/2.97-26.4 -/1500 12.7*11.2*7.25
NN2-15S15ANT 2 -/13.5-16.5 84 -/1500 12.7*11.2*7.25 -
NN2-15S12ANT 2 -/13.5-16.5 84 -/1500 12.7*11.2*7.25 -
NN2-15S05ANT 2 -/13.5-16.5 82 -/1500 12.7*11.2*7.25 -
NN2-24S5V5ANT 2 -/21.6-26.4 84 -/1500 12.7*11.2*7.25 -
NN2-05S05ANT 2 -/4.5-5.5 83 -/1500 12.7*11.2*7.25 CE
NN2-24S24ANT 2 -/21.6-26.4 84 -/1500 12.7*11.2*7.25 -
NN2-12S24ANT 2 -/10.8-13.2 84 -/1500 12.7*11.2*7.25 CE,RoHS
NN2-05S15ANT 2 -/4.5-5.5 82 -/1500 12.7*11.2*7.25 CE
NN2-05S07ANT 2 -/4.5-5.5 83 -/1500 12.7*11.2*7.25 CE
NN2-24S12ANT 2 -/21.6-26.4 86 -/1500 12.7*11.2*7.25 -
NN2-24S05ANT 2 -/21.6-26.4 84 -/1500 12.7*11.2*7.25 -
NN2-12S12ANT 2 -/10.8-13.2 86 -/1500 12.7*11.2*7.25 CE,RoHS
NN2-12S05ANT 2 -/10.8-13.2 84 -/1500 12.7*11.2*7.25 CE,RoHS
NN2-05S12ANT 2 -/4.5-5.5 86 -/1500 12.7*11.2*7.25 CE
NN2-05S09ANT 2 -/4.5-5.5 85 -/1500 12.7*11.2*7.25 CE
NN2-05S3V3ANT 2 -/4.5-5.5 80 -/1500 12.7*11.2*7.25 CE
NN2-3V3S05ANT 2 -/2.97-3.63 82 -/1500 12.7*11.2*7.25 -
NN3-XXSXXC3N 系列
-/4.5-26.4 -/3000 19.5*7.0*10.1
NN3-12S24C3N 3 -/10.8-13.2 83 -/3000 19.5*7.0*10.1 -
NN3-12S15C3N 3 -/10.8-13.2 83 -/3000 19.5*7.0*10.1 -
NN3-05S15C3N 3 -/4.5-5.5 83 -/3000 19.5*7.0*10.1 -
NN3-05S12C3N 3 -/4.5-5.5 83 -/3000 19.5*7.0*10.1 -
NN3-24S24C3N 3 -/21.6-26.4 84 -/3000 19.5*7.0*10.1 -
NN3-24S15C3N 3 -/21.6-26.4 85 -/3000 19.5*7.0*10.1 -
NN3-24S12C3N 3 -/21.6-26.4 84 -/3000 19.5*7.0*10.1 -
NN3-24S05C3N 3 -/21.6-26.4 83 -/3000 19.5*7.0*10.1 -
NN3-05S05C3N 3 -/4.5-5.5 83 -/3000 19.5*7.0*10.1 CE,RoHS
NN3-12S12C3N 3 -/10.8-13.2 84 -/3000 19.5*7.0*10.1 -
NN3-12S05C3N 3 -/10.8-13.2 83 -/3000 19.5*7.0*10.1 -
NN3-XXSXXC4N 系列
-/4.5-26.4 -/4000 19.5*7.0*10.1
NN3-24S24C4N 3 -/21.6-26.4 84 -/4000 19.5*7.0*10.1 -
NN3-24S15C4N 3 -/21.6-26.4 85 -/4000 19.5*7.0*10.1 -
NN3-24S12C4N 3 -/21.6-26.4 84 -/4000 19.5*7.0*10.1 -
NN3-24S05C4N 3 -/21.6-26.4 83 -/4000 19.5*7.0*10.1 -
NN3-12S24C4N 3 -/10.8-13.2 83 -/4000 19.5*7.0*10.1 -
NN3-12S15C4N 3 -/10.8-13.2 83 -/4000 19.5*7.0*10.1 -
NN3-05S15C4N 3 -/4.5-5.5 83 -/4000 19.5*7.0*10.1 -
NN3-05S12C4N 3 -/4.5-5.5 83 -/4000 19.5*7.0*10.1 -
NN3-05S05C4N 3 -/4.5-5.5 83 -/4000 19.5*7.0*10.1 -
NN3-12S12C4N 3 -/10.8-13.2 84 -/4000 19.5*7.0*10.1 -
NN3-12S05C4N 3 -/10.8-13.2 83 -/4000 19.5*7.0*10.1 CE
NN3-XXSXXCN 系列
-/4.5-26.4 -/1500 19.5*7.0*10.0
NN3-24S24CN 3 -/21.6-26.4 84 -/1500 19.5*7.0*10.0 -
NN3-24S15CN 3 -/21.6-26.4 85 -/1500 19.5*7.0*10.0 -
NN3-12S24CN 3 -/4.5-5.5 83 -/1500 19.5*7.0*10.0 CE,RoHS
NN3-24S12CN 3 -/21.6-26.4 84 -/1500 19.5*7.0*10.0 -
NN3-24S05CN 3 -/21.6-26.4 83 -/1500 19.5*7.0*10.0 -
NN3-12S15CN 3 -/10.8-13.2 83 -/1500 19.5*7.0*10.0 CE,RoHS
NN3-12S20CN 3 -/4.5-5.5 83 -/1500 19.5*7.0*10.0 CE,RoHS
NN3-12S12CN 3 -/10.8-13.2 84 -/1500 19.5*7.0*10.0 CE,RoHS
NN3-12S05CN 3 -/10.8-13.2 83 -/1500 19.5*7.0*10.0 CE,RoHS
NN3-05S24CN 3 -/4.5-5.5 83 -/1500 19.5*7.0*10.0 CE,RoHS
NN3-05S12CN 3 -/4.5-5.5 83 -/1500 19.5*7.0*10.0 CE,RoHS
NN3-05S05CN 3 -/4.5-5.5 83 -/1500 19.5*7.0*10.0 CE,RoHS
FA5-220SXXG2D4(-T)(-TS)系列
85-305/120-430 4000/- 25.4*25.4*17.6
FA5-220S24G2D4 5 85-305/120-430 78 4000/- 25.4*25.4*17.6
FA5-220S15G2D4 5 85-305/120-430 76 4000/- 25.4*25.4*17.6
FA5-220S12V5G2D4 5 85-305/120-430 76 4000/- 25.4*25.4*17.6
FA5-220S12V3G2D4 5 85-305/120-430 76 4000/- 25.4*25.4*17.6
FA5-220S12G2D4 5 85-305/120-430 75 4000/- 25.4*25.4*17.6
FA5-220S05G2D4 5 85-305/120-430 72 4000/- 25.4*25.4*17.6
FA5-220S3V3G2D4 5 85-305/120-430 69 4000/- 25.4*25.4*17.6
FK6-XXSXXE2C3 系列
-/9-75 -/3000 22.0*9.5*12.0
FK6-36S24E2C3 6 -/18-75 86 -/3000 22.0*9.5*12.0 -
FK6-36S15E2C3 6 -/18-75 87 -/3000 22.0*9.5*12.0 -
FK6-36S12E2C3 6 -/18-75 86 -/3000 22.0*9.5*12.0 -
FK6-36S09E2C3 6 -/18-75 84 -/3000 22.0*9.5*12.0 -
FK6-36S05E2C3 6 -/18-75 83 -/3000 22.0*9.5*12.0 -
FK6-36S3V3E2C3 6 -/18-75 79 -/3000 22.0*9.5*12.0 -
FK6-18S48E2C3 6 -/9-36 86 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S24E2C3 6 -/9-36 85 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S15E2C3 6 -/9-36 87 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S12E2C3 6 -/9-36 86 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S09E2C3 6 -/9-36 84 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S05E2C3 6 -/9-36 82 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-18S3V3E2C3 6 -/9-36 78 -/3000 22.0*9.5*12.0 CE,RoHS
FK6-XXDXXE2C3 系列
-/9-36 -/3000 22.0*9.5*12.0
FK6-18D18E2C3 6 -/9-36 83 -/3000 22.0*9.5*12.0 -
FK6-18D24E2C3 6 -/9-36 82 -/3000 22.0*9.5*12.0 -
FK6-18D15E2C3 6 -/9-36 83 -/3000 22.0*9.5*12.0 -
FK6-18D12E2C3 6 -/9-36 83 -/3000 22.0*9.5*12.0 -
FK6-18D09E2C3 6 -/9-36 85 -/3000 22.0*9.5*12.0 -
FK6-18D05E2C3 6 -/9-36 82 -/3000 22.0*9.5*12.0 -
FA8-220SXXD2 系列
85-265/120-380 3000/- 39.0*25.0*22.0
FA8-220S05D2 8 85-265/120-380 81 3000/- 39.0*25.0*22.0 -
FA8-220S24D2 8 85-265/120-380 87 3000/- 39.0*25.0*22.0 -
FA8-220S12D2 8 85-265/120-380 83 3000/- 39.0*25.0*22.0 -
FA8-220S3V8D2 8 85-265/120-380 80 3000/- 39.0*25.0*22.0 -
FA8-220S3V6D2 8 85-265/120-380 80 3000/- 39.0*25.0*22.0 -
FA8-220S3V3D2 8 85-265/120-380 80 3000/- 39.0*25.0*22.0 -
UA10-220SXXP2D(-T)(-TS) 系列
90-265/127-380 3000/- 53.8*28.8*19.0
UA10-220S05V3P2D 10 90-265/127-380 75 3000/- 53.8*28.8*19.0 -
UA10-220S24P2D 10 90-265/127-380 83 3000/- 53.8*28.8*19.0 CE,RoHS
UA10-220S15P2D 10 90-265/127-380 82 3000/- 53.8*28.8*19.0 -
UA10-220S12V5P2D 10 90-265/127-380 82 3000/- 53.8*28.8*19.0 -
UA10-220S12P2D 10 90-265/127-380 81 3000/- 53.8*28.8*19.0 CE,RoHS
UA10-220S09P2D 10 90-265/127-380 81 3000/- 53.8*28.8*19.0 -
UA10-220S06P2D 10 90-265/127-380 75 3000/- 53.8*28.8*19.0 -
UA10-220S05P2D 10 90-265/127-380 74 3000/- 53.8*28.8*19.0 CE,RoHS
UA10-220S3V3P2D 10 90-265/127-380 74 3000/- 53.8*28.8*19.0 -
FA10-220SXXY2D4(-T)(-TS) 系列
85-305/120-430 4000/- 50.8*25.4*15.16
FA10-220S24Y2D4 10 85-305/120-430 84 4000/- 50.8*25.4*15.16 CE,RoHS
FA10-220S12Y2D4 10 85-305/120-430 83 4000/- 50.8*25.4*15.16 CE,RoHS
FA10-220S05Y2D4 10 85-305/120-430 84 4000/- 50.8*25.4*15.16 CE,RoHS
FA10-220S4V8Y2D4 10 85-305/120-430 78 4000/- 50.8*25.4*15.16 CE,RoHS
FA10-220SXXC2N3 系列
85-265/120-380 3000/- 48.5*36.0*20.5
FA10-220S24C2N3 10 85-265/120-380 84 3000/- 48.5*36.0*20.5 -
FA10-220S15C2N3 10 85-265/120-380 83 3000/- 48.5*36.0*20.5 -
FA10-220S12C2N3 10 85-265/120-380 82 3000/- 48.5*36.0*20.5 -
FA10-220S05C2N3 10 85-265/120-380 77 3000/- 48.5*36.0*20.5 -
FA10-220DXXE2D4 系列
85-305/120-430 4000/- 55.0*45.0*20.5
FA10-220D09E2D4 10 85-305/120-430 79 4000/- 55.0*45.0*20.5 -
FA10-220D24E2D4 10 85-305/120-430 82 4000/- 55.0*45.0*20.5 -
FA10-220D15E2D4 10 85-305/120-430 80 4000/- 55.0*45.0*20.5 -
FA10-220D12E2D4 10 85-305/120-430 80 4000/- 55.0*45.0*20.5 -
FA10-220D05E2D4 10 85-305/120-430 76 4000/- 55.0*45.0*20.5 -
DA10-220SXXP2D4 系列
90-310/127-438 3100/- 53.8*28.8*19.0
DA10-220S24P2D4 10 90-310/127-438 83 3100/- 53.8*28.8*19.0 CE,RoHS
DA10-220S15P2D4 10 90-310/127-438 82 3100/- 53.8*28.8*19.0 -
DA10-220S12P2D4 10 90-310/127-438 82 3100/- 53.8*28.8*19.0 CE,RoHS
DA10-220S09P2D4 10 90-310/127-438 81 3100/- 53.8*28.8*19.0 -
DA10-220S05P2D4 10 90-310/127-438 74 3100/- 53.8*28.8*19.0 CE,RoHS
DA10-220EXXXXGA9N4 系列
85-305/120-430 4000/- 58.0*41.0*17.3
DA10-220E0524GA9N4 10 85-305/120-430 75 4000/- 58.0*41.0*17.3 -
DA10-220E0512GA9N4 10 85-305/120-430 74 4000/- 58.0*41.0*17.3 -
DA10-220E0505GA9N4 10 85-305/120-430 73 4000/- 58.0*41.0*17.3 -
FK10-XXSXXE2C3 系列
-/9-36 -/2250 22.0*9.5*12.0
FK10-18S18E2C3 10 -/18-72 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S24E2C3 10 -/18-72 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S15E2C3 10 -/18-72 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S12E2C3 10 -/18-72 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S09E2C3 10 -/18-72 87 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S05E2C3 10 -/18-72 87 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-36S3V3E2C3 10 -/18-72 84 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S24E2C3 10 -/9-36 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S15E2C3 10 -/9-36 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S12E2C3 10 -/9-36 88 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S09E2C3 10 -/9-36 87 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S05E2C3 10 -/9-36 87 -/2250 22.0*9.5*12.0 CE,RoHS
FK10-18S3V3E2C3 10 -/9-36 84 -/2250 22.0*9.5*12.0 CE,RoHS
PFD12-XXSXXA3C2-(XXX) 系列
-/9-75 -/1500 25.4*25.4*11.0
PFD12-36S24A3(C)2 12 -/18-75 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S15A3(C)2 12 -/18-75 89 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S12A3(C)2 12 -/18-75 87 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S09A3(C)2 12 -/18-75 86 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S5V5A3(C)2 12 -/18-75 84 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S05A3(C)2 12 -/18-75 83 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-36S3V3A3(C)2 12 -/18-75 78 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S24A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S20A3(C)2 12 -/9-36 86 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S17A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S15A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S12A3(C)2 12 -/9-36 87 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S09A3(C)2 12 -/9-36 86 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S06A3(C)2 12 -/9-36 85 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S05A3(C)2 12 -/9-36 83 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-18S3V3A3(C)2 12 -/9-36 81 -/1500 25.4*25.4*11.0 CE,RoHS
PFD12-XXDXXA3(C)2(-XXX) 系列
-/9-75 -/1500 25.4*25.4*11.0
PFD12-36D24A3(C)2 12 -/18-75 87 -/1500 25.4*25.4*11.0 -
PFD12-36D15A3(C)2 12 -/18-75 88 -/1500 25.4*25.4*11.0 -
PFD12-36D12A3(C)2 12 -/18-75 87 -/1500 25.4*25.4*11.0 -
PFD12-36D09A3(C)2 12 -/18-75 85 -/1500 25.4*25.4*11.0 -
PFD12-36D05A3(C)2 12 -/18-75 84 -/1500 25.4*25.4*11.0 -
PFD12-18D24A3(C)2 12 -/9-36 87 -/1500 25.4*25.4*11.0 -
PFD12-18D15A3(C)2 12 -/9-36 88 -/1500 25.4*25.4*11.0 -
PFD12-18D12A3(C)2 12 -/9-36 87 -/1500 25.4*25.4*11.0 -
PFD12-18D09A3(C)2 12 -/9-36 85 -/1500 25.4*25.4*11.0 -
PFD12-18D05A3(C)2 12 -/9-36 84 -/1500 25.4*25.4*11.0 -
FA15-220E05XXF2D4 系列
85-265/120-380 4000/- 62.0*45.0*22.5
FA15-220E12F2D4 15 85-265/120-380 84 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220E0515F2D4 15 85-265/120-380 78 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220E0524F2D4 15 85-265/120-380 78 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220E0512F2D4 15 85-265/120-380 77 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220SXXG2N4 系列
85-305/120-430 4000/- 47.6*26.8*23.5
FA15-220S15G2N4 15 85-305/120-430 85 4000/- 47.6*26.8*23.5 -
FA15-220S24G2N4 15 85-305/120-430 86 4000/- 47.6*26.8*23.5 CE
FA15-220S12V5G2N4 15 85-305/120-430 85 4000/- 47.6*26.8*23.5 CE
FA15-220S12G2N4 15 85-305/120-430 85 4000/- 47.6*26.8*23.5 CE
FA15-220S05G2N4 15 85-305/120-430 85 4000/- 47.6*26.8*23.5 CE

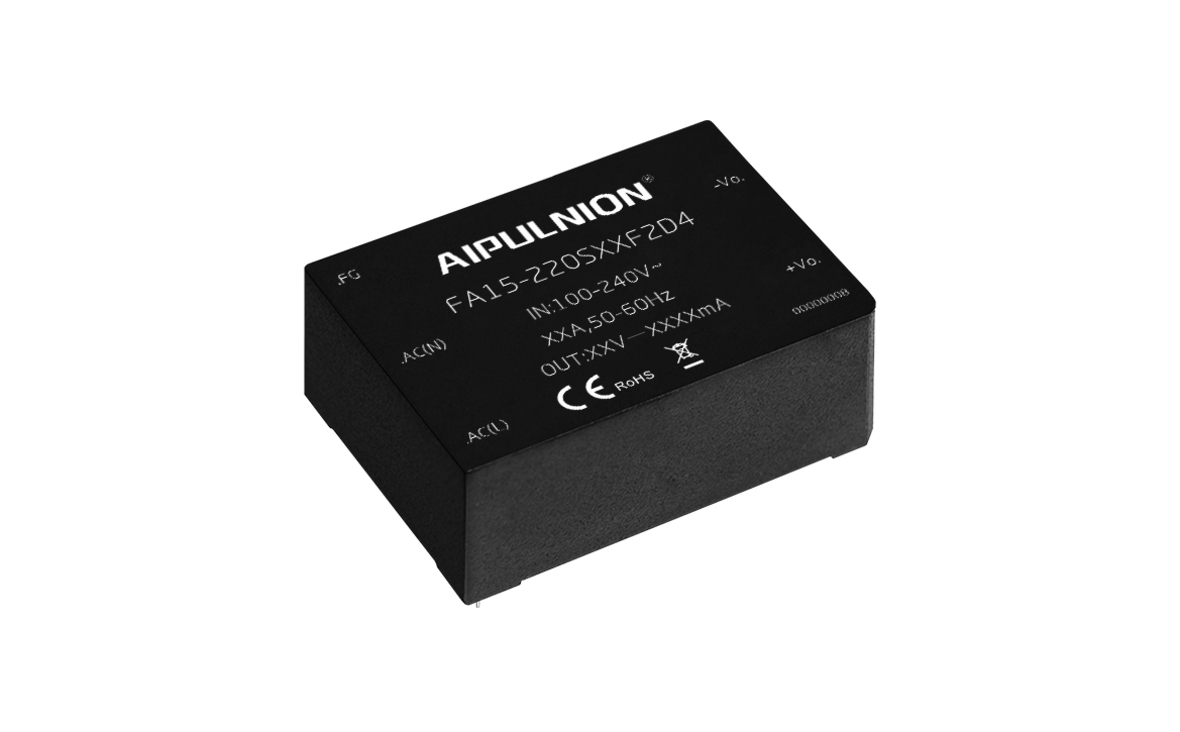

FA15-220SXXF2D4(-T)(-TS) 系列
85-265/120-380 4000/- 62.0*45.0*22.5
FA15-220S24F2D4 15 85-265/120-380 86 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S20F2D4 15 85-265/120-380 85 4000/- 62.0*45.0*22.5 -
FA15-220S15F2D4 15 85-265/120-380 85 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S12F2D4 15 85-265/120-380 84 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S09F2D4 15 85-265/120-380 82 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S05F2D4 15 85-265/120-380 74 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S3V3F2D4 15 85-265/120-380 70 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220SXXE2D4(-T)(-TS) 系列
85-265/120-380 3800/- 55.0*45.0*20.5
FA15-220S06E2D4(-T)(-TS) 15 85-265/120-380 79 3800/- 55.0*45.0*20.5 -
FA15-220S24E2D4(-T)(-TS) 15 85-265/120-380 82 3800/- 55.0*45.0*20.5 -
FA15-220S15E2D4(-T)(-TS) 15 85-265/120-380 81 3800/- 55.0*45.0*20.5 -
FA15-220S12E2D4(-T)(-TS) 15 85-265/120-380 81 3800/- 55.0*45.0*20.5 -
FA15-220S05E2D4(-T)(-TS) 15 85-265/120-380 75 3800/- 55.0*45.0*20.5 -
PFD15-XXDXXA3(C)2(-XXX) 系列
-/9-75 -/1500 25.4*25.4*12.5
PFD15-36D09A3(C)2 15 -/9-36 86 -/1500 25.4*25.4*12.5 -
PFD15-18D09A3(C)2 15 -/9-36 88 -/1500 25.4*25.4*12.5 -
PFD15-18D12A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -
PFD15-36D24A3(C)2 15 -/18-75 90 -/1500 25.4*25.4*12.5 -
PFD15-36D15A3(C)2 15 -/18-75 89 -/1500 25.4*25.4*12.5 -
PFD15-36D12A3(C)2 15 -/18-75 89 -/1500 25.4*25.4*12.5 -
PFD15-36D05A3(C)2 15 -/18-75 86 -/1500 25.4*25.4*12.5 -
PFD15-18D24A3(C)2 15 -/9-36 88 -/1500 25.4*25.4*12.5 -
PFD15-18D15A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -
PFD15-18D05A3(C)2 15 -/9-36 87 -/1500 25.4*25.4*12.5 -

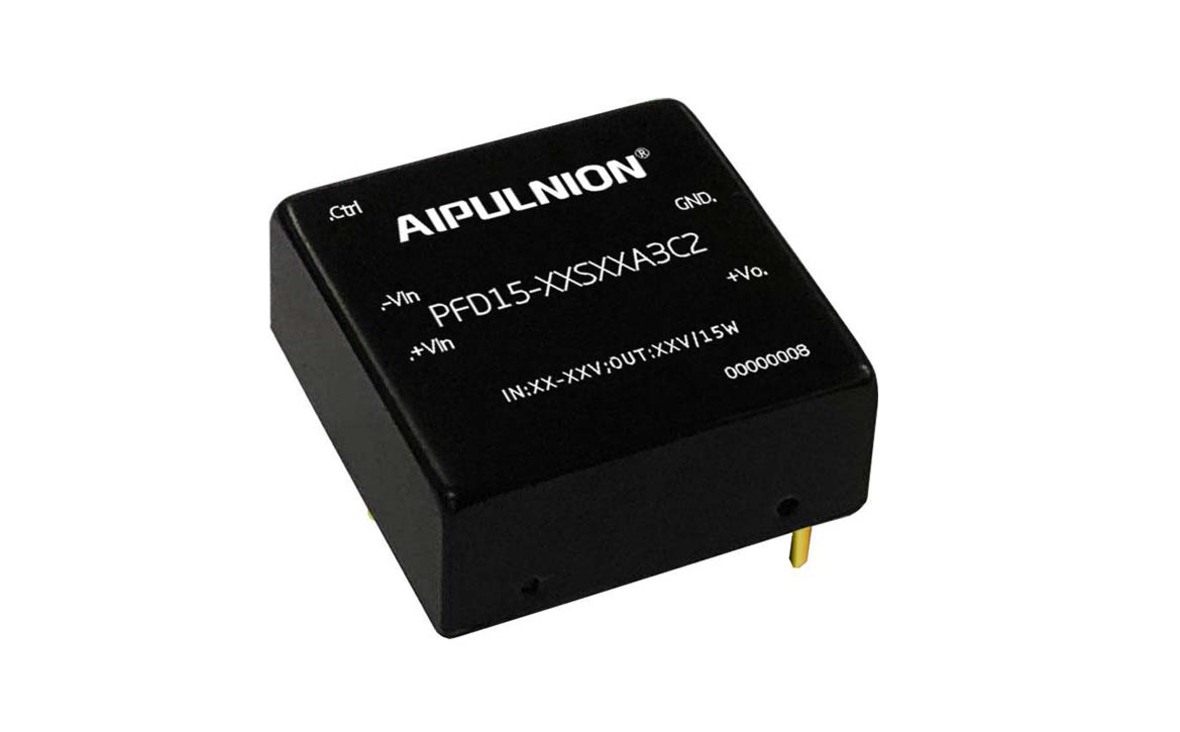

PFD15-XXSXXA3(C)2(-XXX) 系列
-/9-75 -/1500 25.4*25.4*12.5
PFD15-18S12V2A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S04A3(C)2 15 -/9-36 89 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S24A3(C)2 15 -/18-75 91 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S15A3(C)2 15 -/18-75 91 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S12A3(C)2 15 -/18-75 91 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S09A3(C)2 15 -/18-75 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S05A3(C)2 15 -/18-75 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-36S3V3A3(C)2 15 -/18-75 88 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S24A3(C)2 15 -/9-36 91 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S15A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S12A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S09A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S05A3(C)2 15 -/9-36 90 -/1500 25.4*25.4*12.5 -,CE,RoHS
PFD15-18S3V3A3(C)2 15 -/9-36 88 -/1500 25.4*25.4*12.5 -,CE,RoHS

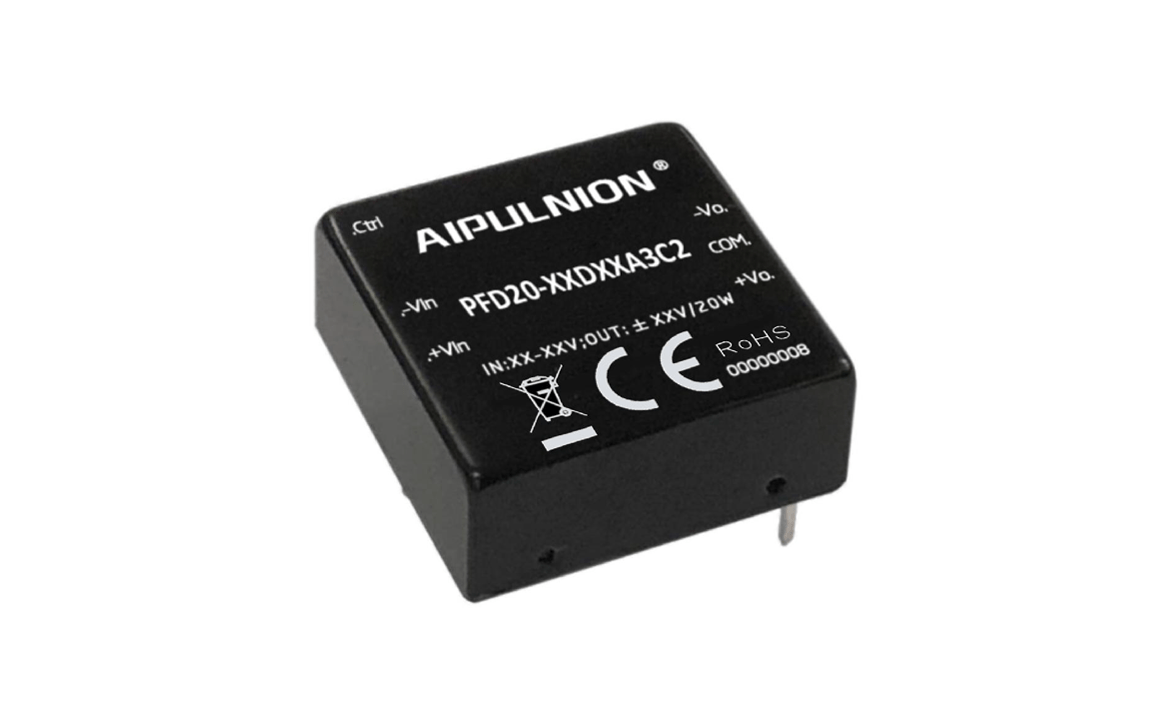

PFD20-XXDXXA3(C)2(-XXX) 系列
-/9-75 -/1500 25.4*25.4*12.5
PFD20-36D09A3(C)2 20 -/18-75 87 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18D09A3(C)2 20 -/9-36 87 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-36D24A3(C)2 20 -/18-75 90 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-36D15A3(C)2 20 -/18-75 89 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-36D12A3(C)2 20 -/18-75 89 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-36D05A3(C)2 20 -/18-75 86 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18D24A3(C)2 20 -/9-36 88 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18D15A3(C)2 20 -/9-36 90 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18D12A3(C)2 20 -/9-36 90 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18D05A3(C)2 20 -/9-36 87 -/1500 25.4*25.4*12.5 CE,RoHS

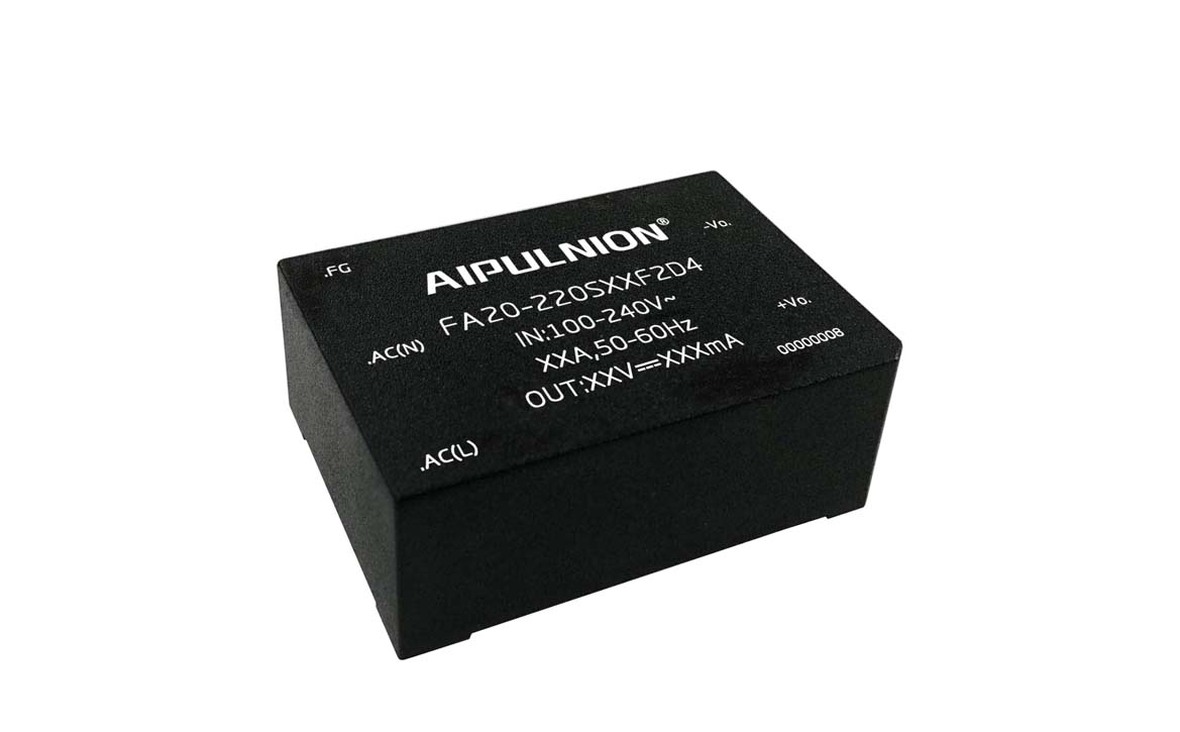

FA20-220SXXF2D4(-T)(-TS) 系列
85-265/120-380 4000/- 62.0*45.0*22.5
FA20-220S28F2D4 20 85-265/120-380 86 4000/- 62.0*45.0*22.5 -
FA20-220S24F2D4 20 85-265/120-380 85 4000/- 62.0*45.0*22.5 -
FA20-220S15F2D4 20 85-265/120-380 83 4000/- 62.0*45.0*22.5 -
FA20-220S12F2D4 20 85-265/120-380 83 4000/- 62.0*45.0*22.5 -
FA20-220S09F2D4 20 85-265/120-380 86 4000/- 62.0*45.0*22.5 -
FA20-220S05F2D4 20 85-265/120-380 77 4000/- 62.0*45.0*22.5 -
FA20-220S3V6F2D4 20 85-265/120-380 74 4000/- 62.0*45.0*22.5 -

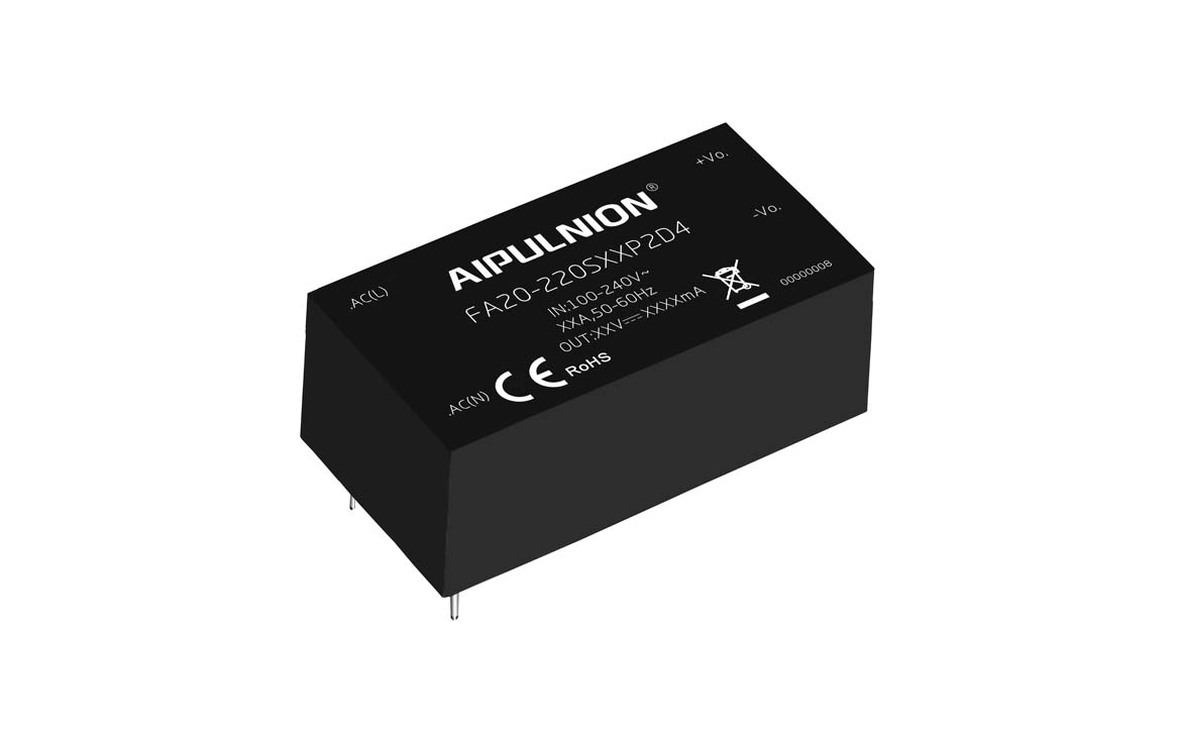

FA20-220SXXP2D4 系列
85-265/120-380 4000/- 53.8*28.8*23.5
FA20-220S48P2D4 20 85-265/120-380 88 4000/- 53.8*28.8*23.5 -
FA20-220S24P2D4 20 85-265/120-380 88 4000/- 53.8*28.8*23.5 CE,RoHS
FA20-220S15P2D4 20 85-265/120-380 85 4000/- 53.8*28.8*23.5 CE,RoHS
FA20-220S12P2D4 20 85-265/120-380 84 4000/- 53.8*28.8*23.5 CE,RoHS
FA20-220S09P2D4 20 85-265/120-380 83 4000/- 53.8*28.8*23.5 CE,RoHS
FA20-220S05P2D4 20 85-265/120-380 82 4000/- 53.8*28.8*23.5 CE,RoHS

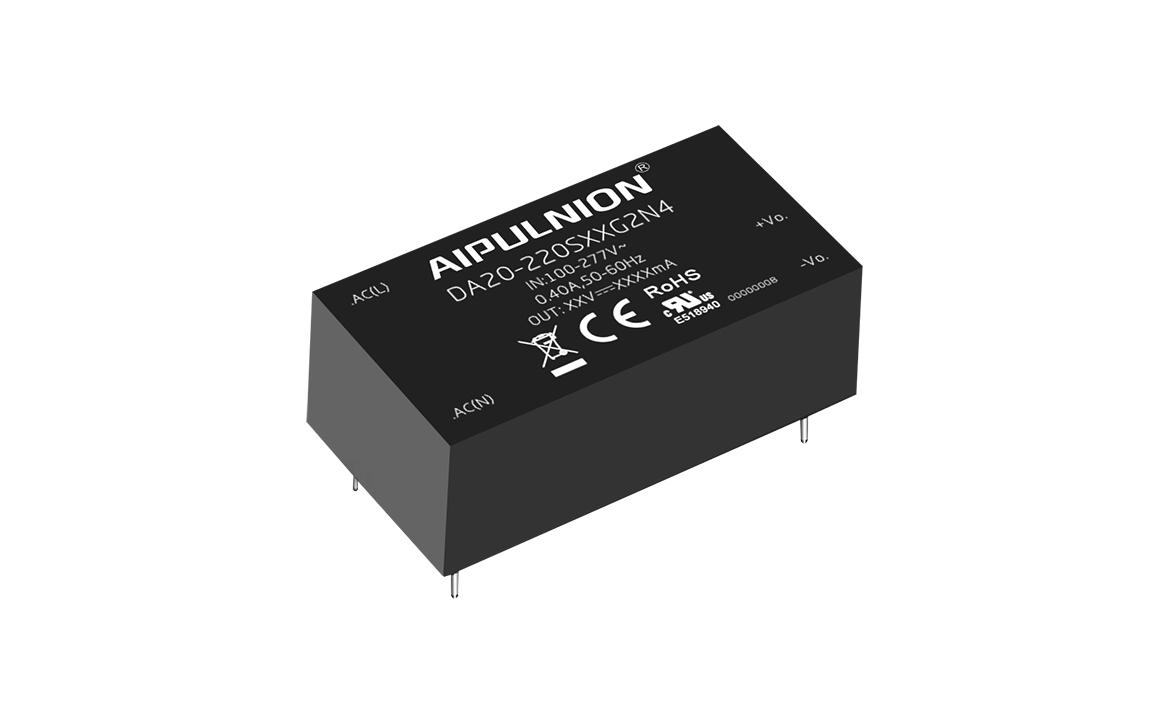

DA20-220SXXG2N4(-T)(-TS) 系列
85-305/120-430 4000/- 54.0*29.3*23.7
DA20-220S48G2N4 20 85-305/120-430 88 4000/- 54.0*29.3*23.7
DA20-220S5V2G2N4 20 85-305/120-430 84 4000/- 54.0*29.3*23.7 -
DA20-220S3V3G2N4 20 85-305/120-430 83 - 54.0*29.3*23.7
DA20-220S24G2N4 20 85-305/120-430 88 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S15G2N4 20 85-305/120-430 86 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S12V5G2N4 20 85-305/120-430 86 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S12G2N4 20 85-305/120-430 86 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S09G2N4 20 85-305/120-430 85 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S05G2N4 20 85-305/120-430 84 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS

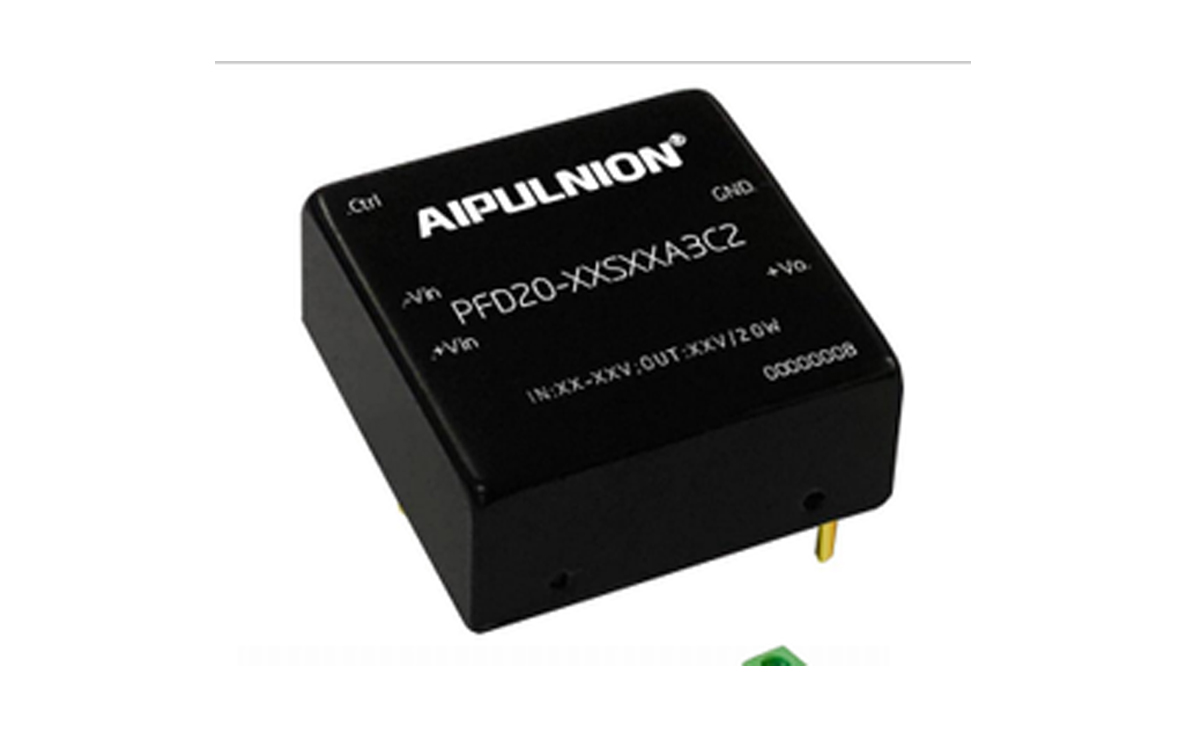

PFD20-XXSXXA3C2(-XXX) 系列
-/9-75 -/1500 25.4*25.4*12.5
PFD20-18S28A3(C)2 20 -/9-36 91 -/1500 25.4*25.4*12.5 -
PFD20-18S18A3(C)2 20 -/9-36 89 -/1500 25.4*25.4*12.5 -
PFD20-36S24A3(C)2 20 -/18-75 91 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-36S15A3(C)2 20 -/18-75 91 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-36S12A3(C)2 20 -/18-75 91 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-36S09A3(C)2 20 -/18-75 90 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-36S05A3(C)2 20 -/18-75 90 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-36S3V3A3(C)2 20 -/18-75 88 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18S24A3(C)2 20 -/9-36 91 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18S15A3(C)2 20 -/9-36 90 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18S12A3(C)2 20 -/9-36 90 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18S09A3(C)2 20 -/9-36 90 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18S05A3(C)2 20 -/9-36 90 -/1500 25.4*25.4*12.5 CE,RoHS
PFD20-18S3V3A3(C)2 20 -/9-36 88 -/1500 25.4*25.4*12.5 CE,RoHS
FA25-220SXXH2D4(-T)(-TS) 系列
85-305/120-430 4200/- 70.0*48.0*23.5
FA25-220S26V5H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S30H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S48H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S29H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S28H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S24H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S18H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S15H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S12H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S09H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S05H2D4 25 85-305/120-430 78 4200/- 70.0*48.0*23.5 CE,RoHS

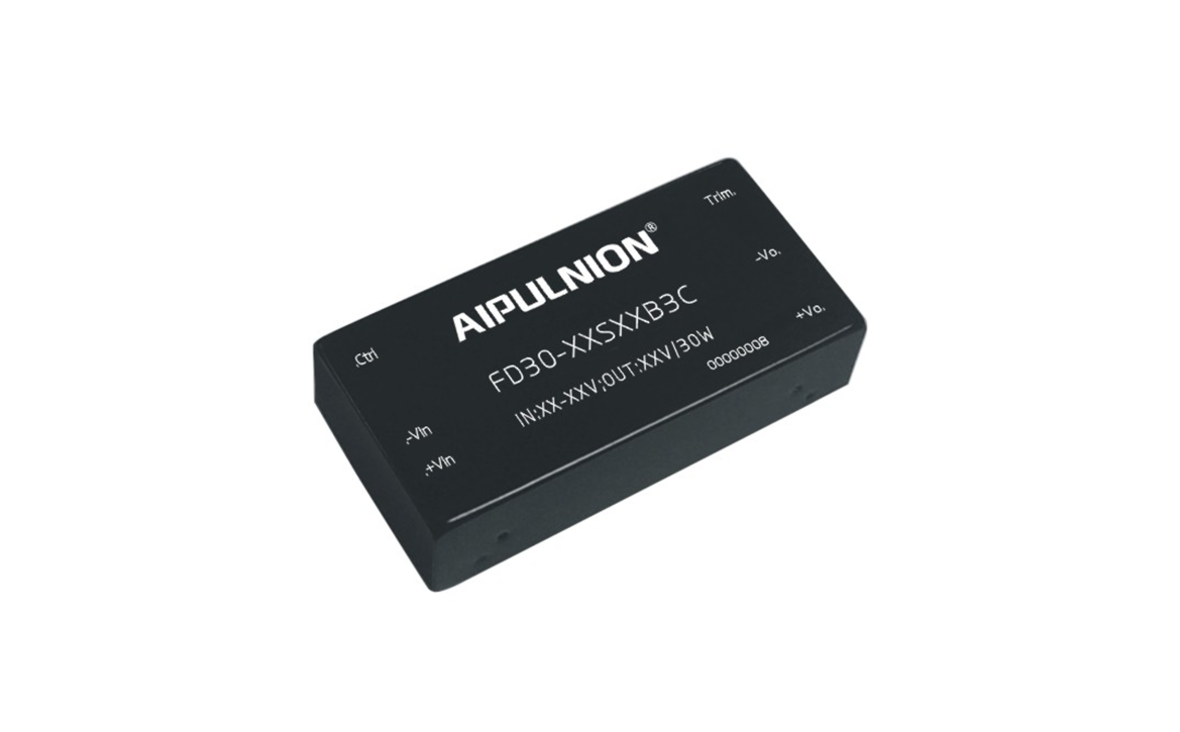

FD30-XXSXXB3(C)(-XXX) 系列
-/9-75 -/1500 50.8*25.4*9.5
FD30-36S18B3(C) 30 -/18-75 88 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-36S24B3(C) 30 -/18-75 90 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-36S15B3(C) 30 -/18-75 90 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-36S12B3(C) 30 -/18-75 90 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-36S09B3(C) 30 -/18-75 89 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-36S05B3(C) 30 -/18-75 90 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-36S3V3B3(C) 30 -/18-75 87 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-18S24B3(C) 30 -/9-36 90 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-18S18B3(C) 30 -/9-36 88 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-18S15B3(C) 30 -/9-36 90 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-18S12B3(C) 30 -/9-36 90 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-18S09B3(C) 30 -/9-36 89 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-18S05B3(C) 30 -/9-36 90 -/1500 50.8*25.4*9.5 CE,RoHS
FD30-18S3V3B3(C) 30 -/9-36 87 -/1500 50.8*25.4*9.5 CE,RoHS

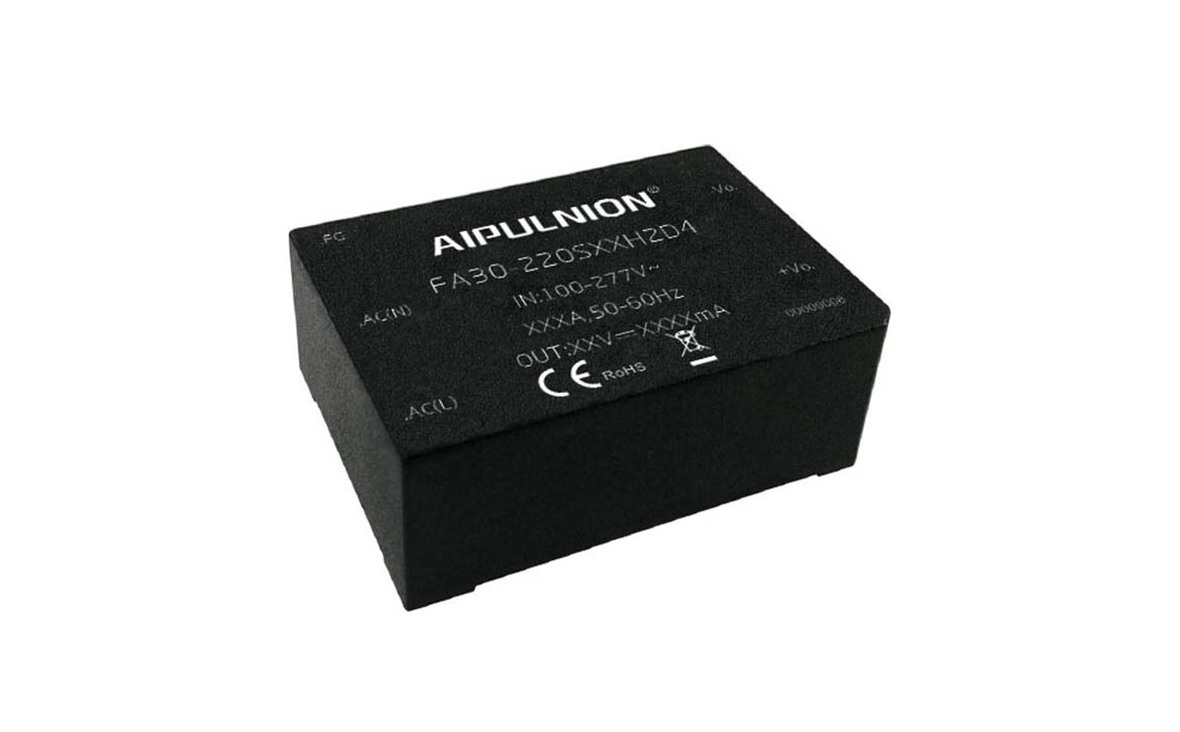

FA30-220SXXH2D4(-T)(-TS) 系列
85-305/120-430 4000/- 70.0*48.0*23.5
FA30-220S24H2D4 30 85-305/120-430 85 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S18H2D4 30 85-305/120-430 85 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S15H2D4 30 85-305/120-430 83 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S12H2D4 30 85-305/120-430 82 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S09H2D4 30 85-305/120-430 80 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S05H2D4 30 85-305/120-430 78 4000/- 70.0*48.0*23.5 -
FD30-XXSXXB3C3(-T)(-TS) 系列
-/40 -160 1500/3000 50.8*25.4*13.0
FD30-110S48B3C3 30 -/40 -160 89 1500/3000 50.8*25.4*13.0 CE,RoHS
FD30-110S24B3C3 30 -/40 -160 89 1500/3000 50.8*25.4*13.0 CE,RoHS
FD30-110S15B3C3 30 -/40 -160 89 1500/3000 50.8*25.4*13.0 CE,RoHS
FD30-110S12B3C3 30 -/40 -160 87 1500/3000 50.8*25.4*13.0 CE,RoHS
FD30-110S05B3C3 30 -/40 -160 89 1500/3000 50.8*25.4*13.0 CE,RoHS
FD30-110S3V3B3C3 30 -/40 -160 88 1500/3000 50.8*25.4*13.0 -,CE,RoHS
FA40-220SXXW2D4 系列
85-265/120-380 4000/- 89.0*63.5*25.0
FA40-220S15W2D4 40 85-265/120-380 84 4000/- 89.0*63.5*25.0 -
FA40-220S24W2D4 40 85-265/120-380 86 4000/- 89.0*63.5*25.0 CE,RoHS
FA40-220S12W2D4 40 85-265/120-380 84 4000/- 89.0*63.5*25.0 CE,RoHS
FA40-220S05W2D4 40 85-265/120-380 79 4000/- 89.0*63.5*25.0 CE,RoHS

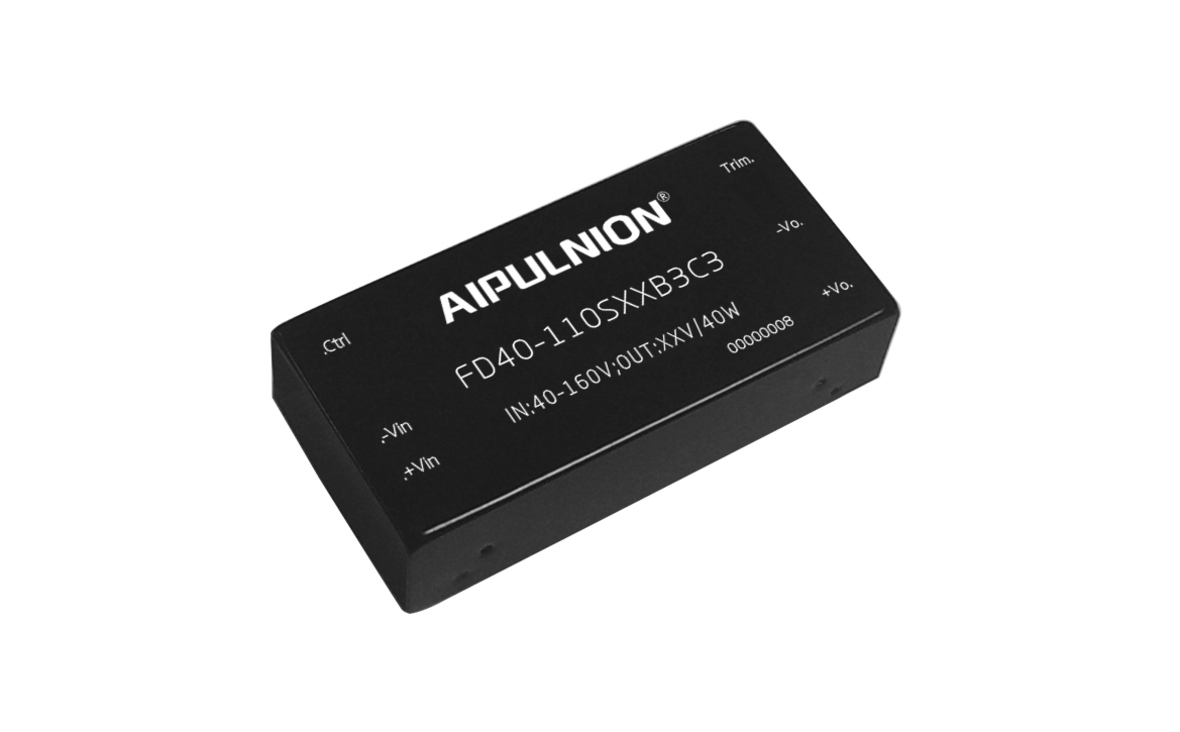

FD40-110SXXB3C3(-T)(-TS) 系列
-/40 -160 1500/3000 50.8*25.4*13.0
FD40-110S48B3C3 40 -/40 -160 89 1500/3000 50.8*25.4*13.0 -
FD40-110S24B3C3 40 -/40 -160 90 1500/3000 50.8*25.4*13.0 -
FD40-110S15B3C3 40 -/40 -160 90 1500/3000 50.8*25.4*13.0 -
FD40-110S12B3C3 40 -/40 -160 90 1500/3000 50.8*25.4*13.0 -
FD40-110S05B3C3 40 -/40 -160 89 1500/3000 50.8*25.4*13.0 -
FD40-110S3V3B3C3 40 -/40 -160 80 1500/3000 50.8*25.4*13.0 -
