| 产品型号 | 图片 | 功率(W) | 输入电压(Vac/Vdc) | 输出电压(Vdc) | 效率(%) | 隔离电压(Vac/Vdc) | 封装尺寸(mm) | 认证/标准 | 规格书 3D图 | 样品申请 |
|---|---|---|---|---|---|---|---|---|---|---|
 |
-/40 -160 | 2100/- | 25.4*25.4*12.5 |
|
||||||
| FD12-110S24A3N4 | 12 | -/40 -160 | 89 | 2100/- | 25.4*25.4*12.5 | - |
|
|||
| FD12-110S15A3N4 | 12 | -/40 -160 | 89 | 2100/- | 25.4*25.4*12.5 | - |
|
|||
| FD12-110S12A3N4 | 12 | -/40 -160 | 87 | 2100/- | 25.4*25.4*12.5 | - |
|
|||
| FD12-110S09A3N4 | 12 | -/40 -160 | 85 | 2100/- | 25.4*25.4*12.5 | - |
|
|||
| FD12-110S05A3N4 | 12 | -/40 -160 | 82 | 2100/- | 25.4*25.4*12.5 | - |
|
|||
| FD12-110S3V3A3N4 | 12 | -/40 -160 | 80 | 2100/- | 25.4*25.4*12.5 | - |
|
|||
 |
-/40 -160 | 1500/2250 | 50.8*25.4*23.0 |
|
||||||
| FD20-110S15B3C3-H1 | 20 | -/40 -160 | 89 | 1500/2250 | 50.8*25.4*23.0 | - |
|
|||
| FD20-110S12B3C3-H1 | 20 | -/40 -160 | 88 | 1500/2250 | 50.8*25.4*23.0 | - |
|
|||
| FD20-110S05B3C3-H1 | 20 | -/40 -160 | 88 | 1500/2250 | 50.8*25.4*23.0 | - |
|
|||
 |
-/40 -160 | 1500/3000 | 50.8*25.4*13.0 |
|
||||||

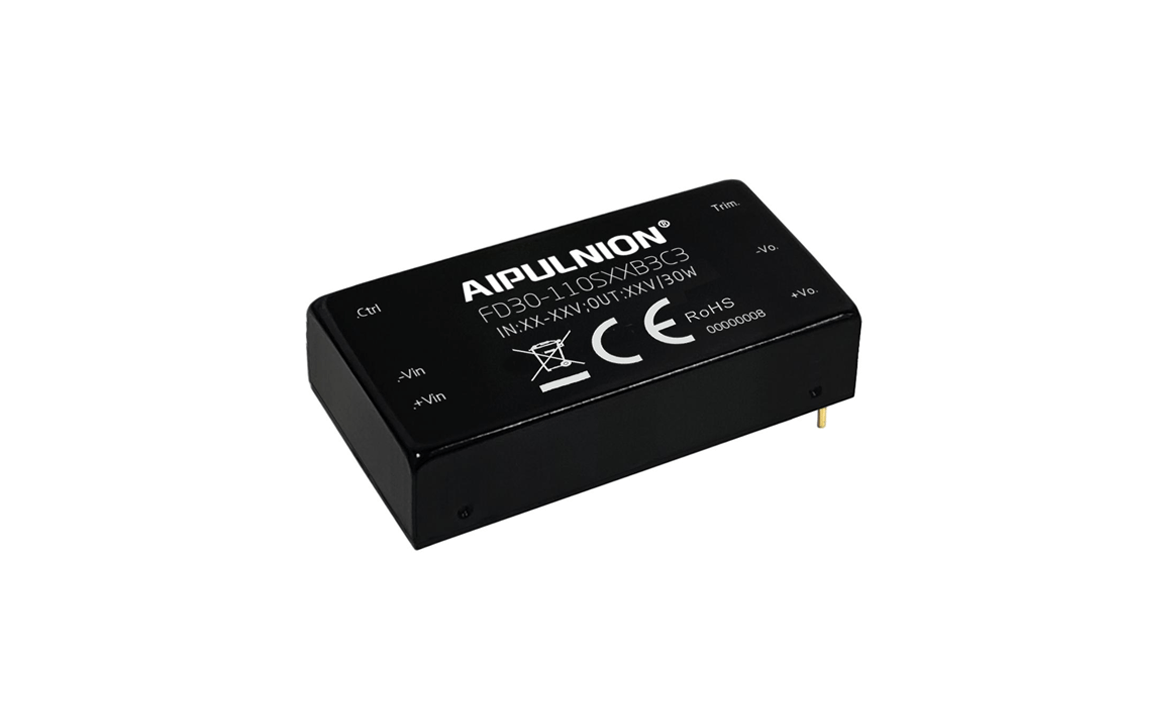

| FD30-110S48B3C3 | 30 | -/40 -160 | 89 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD30-110S24B3C3 | 30 | -/40 -160 | 89 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD30-110S15B3C3 | 30 | -/40 -160 | 89 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD30-110S12B3C3 | 30 | -/40 -160 | 87 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD30-110S05B3C3 | 30 | -/40 -160 | 89 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD30-110S3V3B3C3 | 30 | -/40 -160 | 88 | 1500/3000 | 50.8*25.4*13.0 | -,CE,RoHS |
|
|||
 |
-/40 -160 | 1500/3000 | 50.8*25.4*13.0 |
|
||||||
| FD50-110S48B3(C)3 | 50 | -/40 -160 | 89 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S24B3(C)3 | 50 | -/40 -160 | 89 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S15B3(C)3 | 50 | -/40 -160 | 88 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S12B3(C)3 | 50 | -/40 -160 | 88 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S05B3(C)3 | 50 | -/40 -160 | 86 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
| FD50-110S3V3B3(C)3 | 50 | -/40 -160 | 85 | 1500/3000 | 50.8*25.4*13.0 | CE,RoHS |
|
|||
 |
-/9-36 | -/1500 | 50.8*25.4*11.8 |
|
||||||

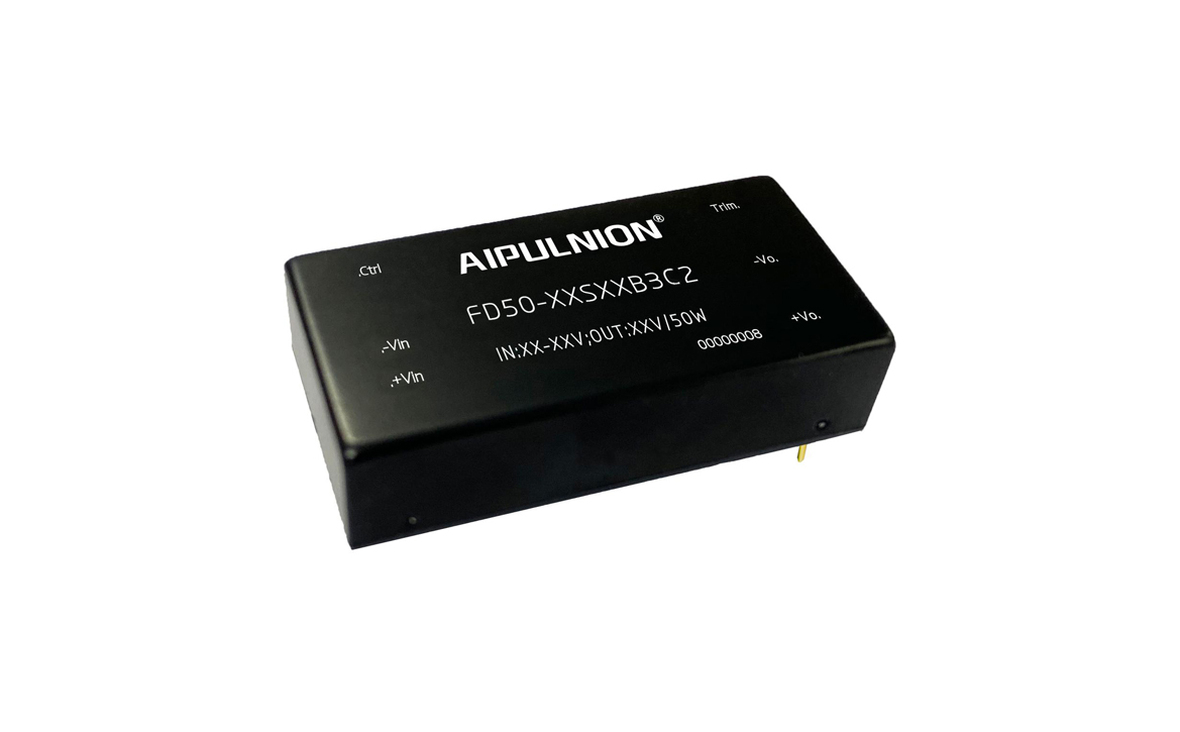

| FD50-18S15B3C2 | 50 | -/9-36 | 90 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD50-18S24B3C2 | 50 | -/9-36 | 90 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD50-18S12B3C2 | 50 | -/9-36 | 90 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
| FD50-18S09B3C2 | 50 | -/9-36 | 89 | -/1500 | 50.8*25.4*11.8 | - |
|
|||
 |
-/43-160 | 3000/- | 61.0*57.9*12.7 |
|
||||||

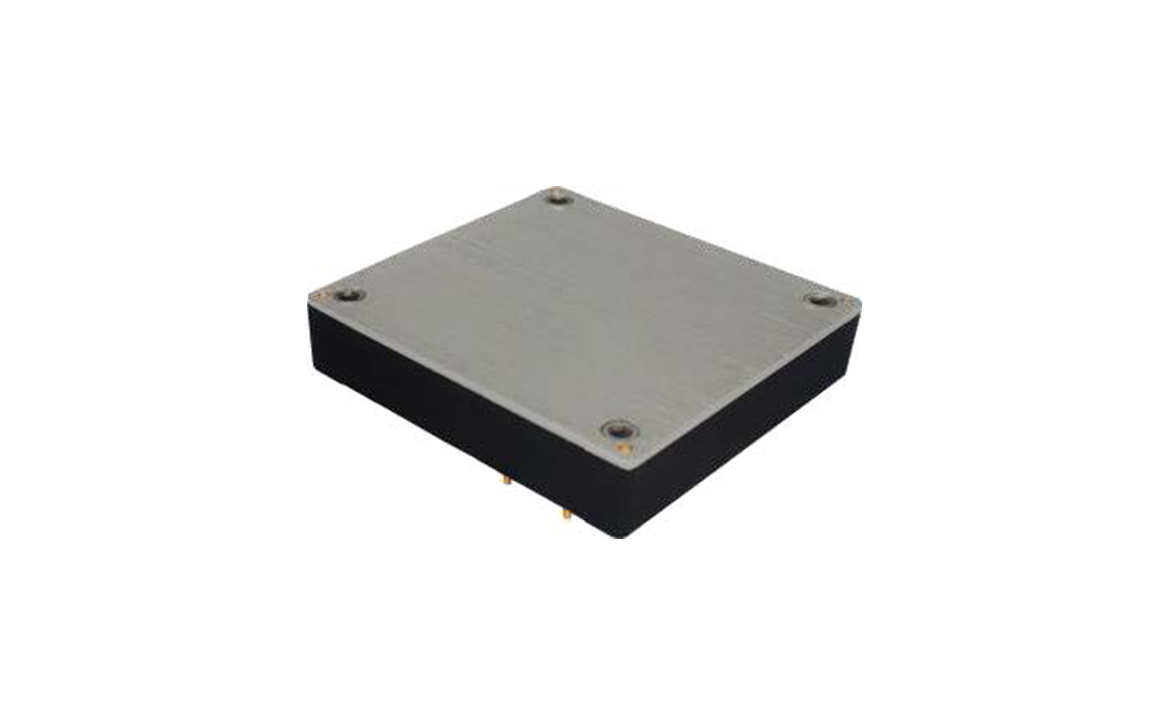

| ZBD300-110S36AN | 300 | -/43-160 | 91 | 3000/- | 61.0*57.9*12.7 | - |
|
|||
| ZBD300-110S36AC | 300 | -/43-160 | 91 | 3000/- | 61.0*57.9*12.7 | - |
|
|||
| ZBD300-110S24AN | 300 | -/43-160 | 91 | 3000/- | 61.0*57.9*12.7 | - |
|
|||
| ZBD300-110S24AC | 300 | -/43-160 | 91 | 3000/- | 61.0*57.9*12.7 | - |
|
|||
| ZBD300-110S12AN | 300 | -/43-160 | 90 | 3000/- | 61.0*57.9*12.7 | - |
|
|||
| ZBD300-110S12AC | 300 | -/43-160 | 90 | 3000/- | 61.0*57.9*12.7 | - |
|
|||
 |
90-264/- | 3000/- | 122.0*70.0*14 |
|
