首页 > 产品中心 > AC-DC电源 > 小功率（2-40W）

小功率（2-40W）

产品选型 >>
产品型号 图片 功率(W) 输入电压(Vac/Vdc) 输出电压(Vdc) 效率(%) 隔离电压(Vac/Vdc) 封装尺寸(mm) 认证/标准 规格书 3D图 样品申请
FA15-300SXXG2N4 系列
176-418/248-591 4000/- 52.4*27.2*24.0
FA15 300S12V3G2N4 15 176-418/248-591 84 4000/- 52.4*27.2*24.0 -
FA15-300S24G2N4 15 176-418/248-591 85 4000/- 52.4*27.2*24.0 -
FA15-300S12G2N4 15 176-418/248-591 84 4000/- 52.4*27.2*24.0 -
FA15-300S05G2N4 15 176-418/248-591 78 4000/- 52.4*27.2*24.0 -

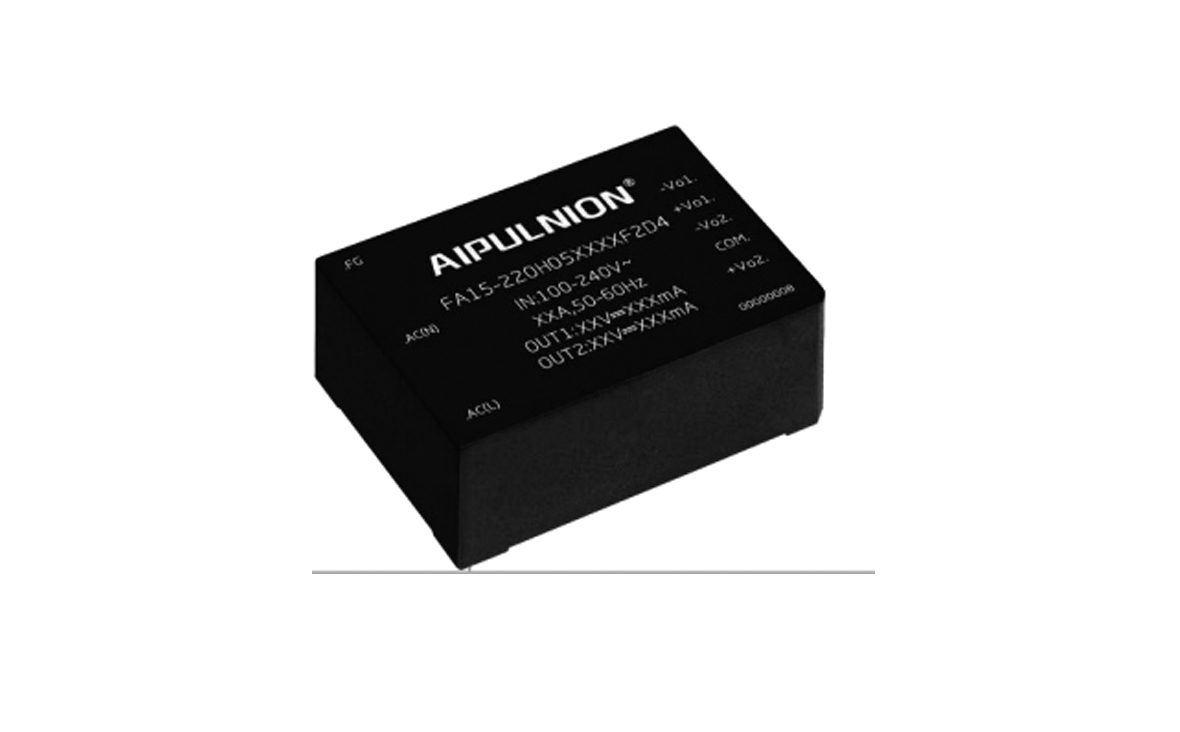

FA15-220H05XXXXF2D4 系列
85-265/120-380 4000/- 62.0*45.0*22.5
FA15-220H051515F2D4 15 85-265/120-380 82 4000/- 62.0*45.0*22.5 -
FA15-220H051212F2D4 15 85-265/120-380 81 4000/- 62.0*45.0*22.5 -
FA15-220H050505F2D4 15 85-265/120-380 80 4000/- 62.0*45.0*22.5 -
FA15-220E05XXF2N3 系列
85-265/120-380 3000/- 62.0*45.0*22.5
FA15-220E0524F2D3 15 85-265/120-380 82 3000/- 62.0*45.0*22.5 -
FA15-220E0512F2D3 15 85-265/120-380 81 3000/- 62.0*45.0*22.5 -
FA15-B4EXXXXFCQ 系列
85-265/100-380 4000/- 62.0*45.0*22.5
FA15-B4E0512FCQ 15 85-265/100-380 77 4000/- 62.0*45.0*22.5 -,CQC
FA15-B4E0515FCQ 15 85-265/100-380 78 4000/- 62.0*45.0*22.5 -,CQC
FA15-B4E0524FCQ 15 85-265/100-380 78 4000/- 62.0*45.0*22.5 -,CQC
FA15-B4E1212FCQ 15 85-265/100-380 84 4000/- 62.0*45.0*22.5 -,CQC

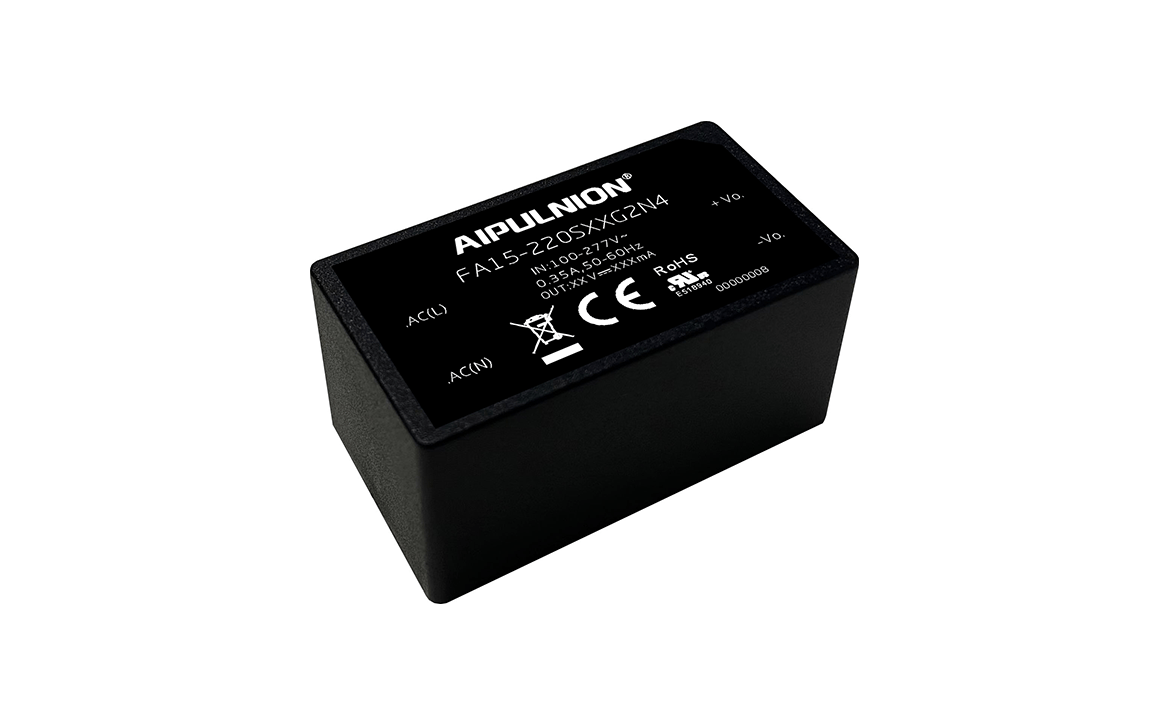

FA15-220SXXG2N4 系列
85-305/120-430 4000/- 47.6*26.8*23.5
FA15-220S12V3G2N4 15 85-305/100-430 85 4000/- 47.6*26.8*23.5 CE
FA15-220S15G2N4 15 85-305/100-430 85 4000/- 47.6*26.8*23.5 -,UL,RoHS
FA15-220S24G2N4 15 85-305/100-430 86 4000/- 47.6*26.8*23.5 CE,UL,RoHS
FA15-220S12V5G2N4 15 85-305/100-430 85 4000/- 47.6*26.8*23.5 CE,UL,RoHS
FA15-220S12G2N4 15 85-305/100-430 85 4000/- 47.6*26.8*23.5 CE,UL,RoHS
FA15-220S05G2N4 15 85-305/100-430 85 4000/- 47.6*26.8*23.5 CE,UL,RoHS
FA15-220E05XXF2D3 系列
85-265/120-380 3000/- 62.0*45.0*22.5
FA15-C5SXXCQ 系列
85-305/100-430 4200/- 47.60*26.80*23.50
FA15-C5S03CQ 15 85-305/100-430 80 4200/- 47.60*26.80*23.50 -,CQC
FA15-C5S05CQ 15 85-305/100-430 85 4200/- 47.60*26.80*23.50 -,CQC
FA15-C5S09CQ 15 85-305/100-430 85 4200/- 47.60*26.80*23.50 -,CQC
FA15-C5S12CQ 15 85-305/100-430 85 4200/- 47.60*26.80*23.50 -,CQC
FA15-C5S15CQ 15 85-305/100-430 85 4200/- 47.60*26.80*23.50 -,CQC
FA15-C5S24CQ 15 85-305/100-430 86 4200/- 47.60*26.80*23.50 -,CQC
FA15-220DXXF2D4 系列
85-265/120-380 -/4000 62.0*45.0*22.5
FA15-220D15F2D4 15 85-265/120-380 83 -/4000 62.0*45.0*22.5 CE
FA15-220D12F2D4 15 85-265/120-380 83 -/4000 62.0*45.0*22.5 CE
FA15-220D05F2D4 15 85-265/120-380 76 -/4000 62.0*45.0*22.5 CE

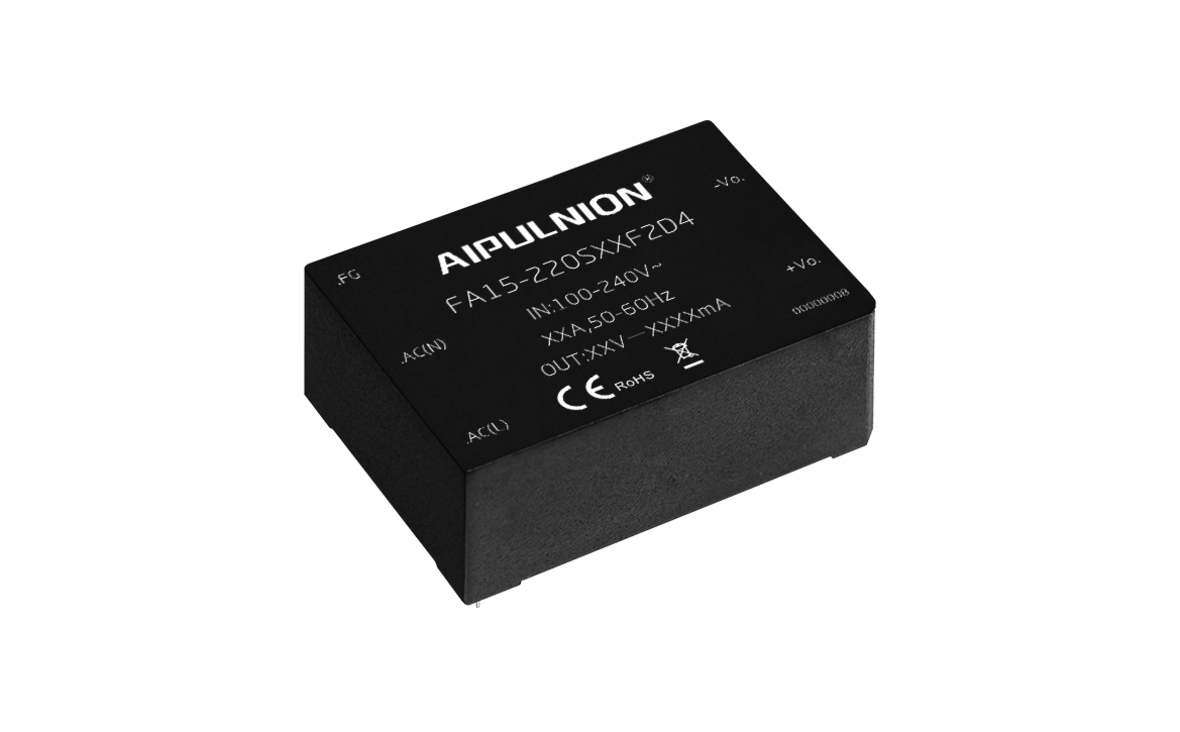

FA15-220SXXF2D4(-T)(-TS) 系列
85-265/120-380 4000/- 62.0*45.0*22.5
FA15-220S24F2D4 15 85-265/120-380 86 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S20F2D4 15 85-265/120-380 85 4000/- 62.0*45.0*22.5 -
FA15-220S15F2D4 15 85-265/120-380 85 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S12F2D4 15 85-265/120-380 84 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S09F2D4 15 85-265/120-380 82 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S05F2D4 15 85-265/120-380 74 4000/- 62.0*45.0*22.5 CE,RoHS
FA15-220S3V3F2D4 15 85-265/120-380 70 4000/- 62.0*45.0*22.5 CE,RoHS

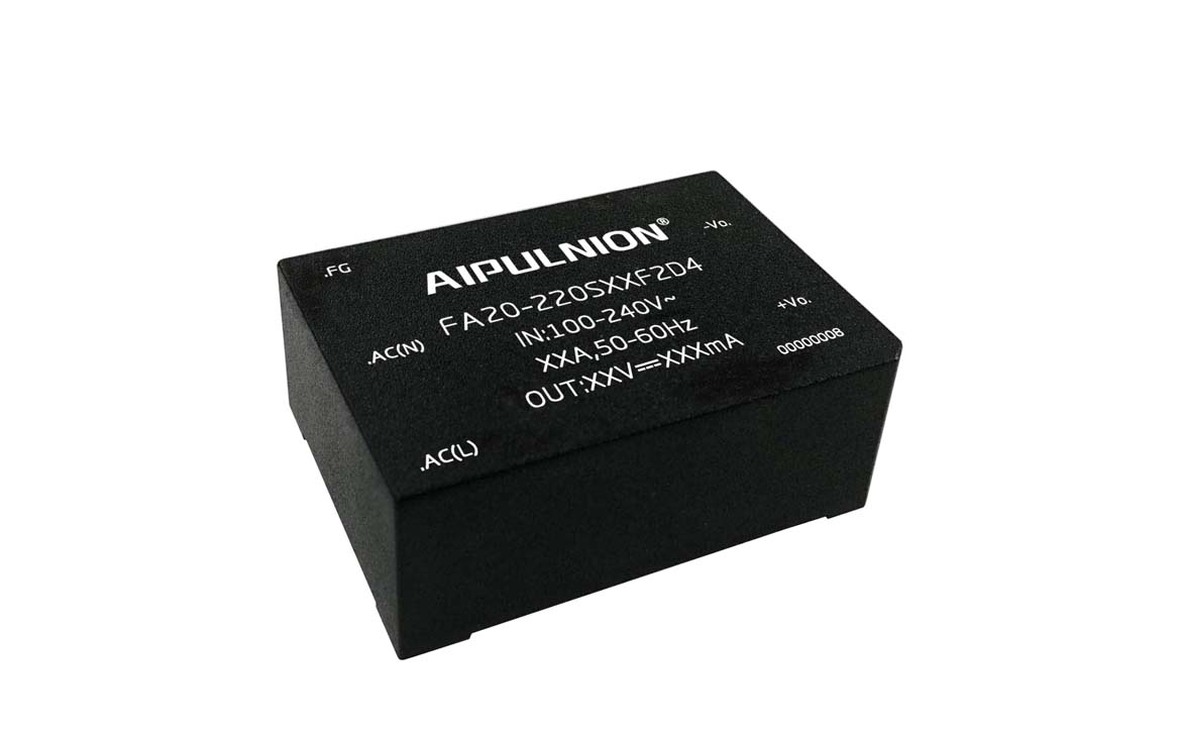

FA20-220SXXF2D4(-T)(-TS) 系列
85-265/120-380 4000/- 62.0*45.0*22.5
FA20-220S28F2D4 20 85-265/120-380 86 4000/- 62.0*45.0*22.5 -
FA20-220S24F2D4 20 85-265/120-380 85 4000/- 62.0*45.0*22.5 -
FA20-220S15F2D4 20 85-265/120-380 83 4000/- 62.0*45.0*22.5 -
FA20-220S12F2D4 20 85-265/120-380 83 4000/- 62.0*45.0*22.5 -
FA20-220S09F2D4 20 85-265/120-380 86 4000/- 62.0*45.0*22.5 -
FA20-220S05F2D4 20 85-265/120-380 77 4000/- 62.0*45.0*22.5 -
FA20-220S3V6F2D4 20 85-265/120-380 74 4000/- 62.0*45.0*22.5 -

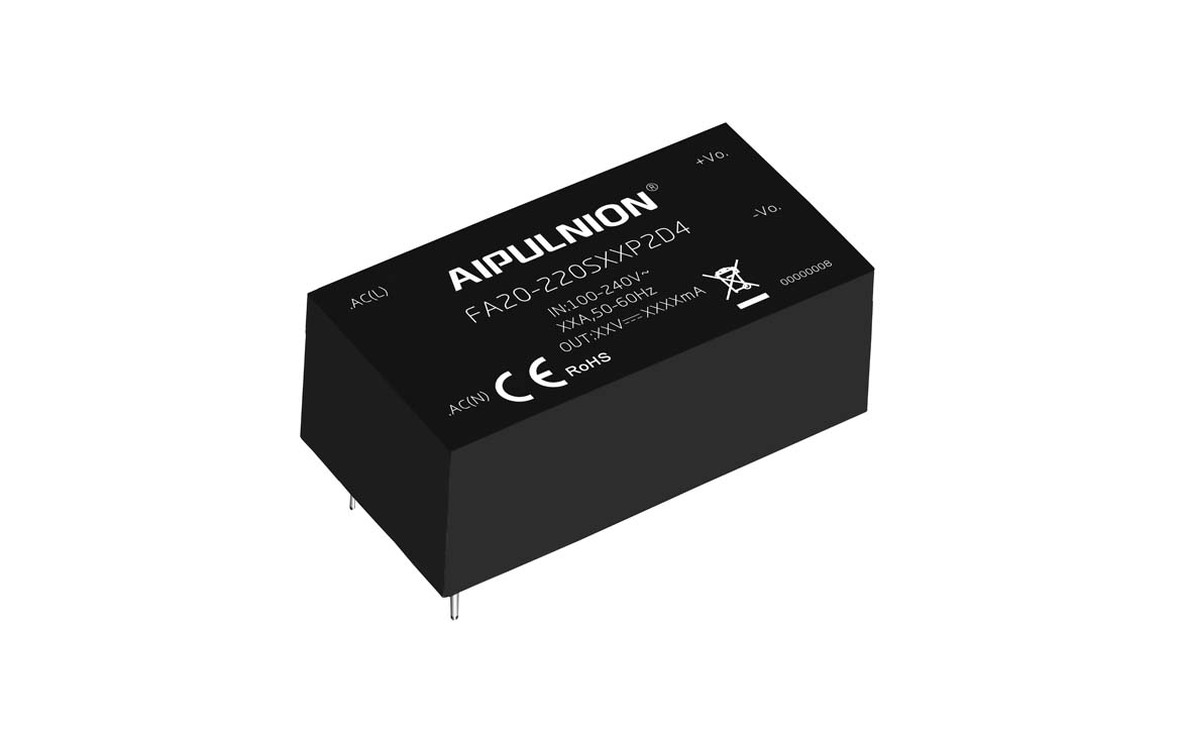

FA20-220SXXP2D4 系列
85-265/120-380 4000/- 53.8*28.8*23.5
FA20-220S48P2D4 20 85-265/120-380 88 4000/- 53.8*28.8*23.5 -
FA20-220S24P2D4 20 85-265/120-380 88 4000/- 53.8*28.8*23.5 CE,RoHS
FA20-220S15P2D4 20 85-265/120-380 85 4000/- 53.8*28.8*23.5 CE,RoHS
FA20-220S12P2D4 20 85-265/120-380 84 4000/- 53.8*28.8*23.5 CE,RoHS
FA20-220S09P2D4 20 85-265/120-380 83 4000/- 53.8*28.8*23.5 CE,RoHS
FA20-220S05P2D4 20 85-265/120-380 82 4000/- 53.8*28.8*23.5 CE,RoHS

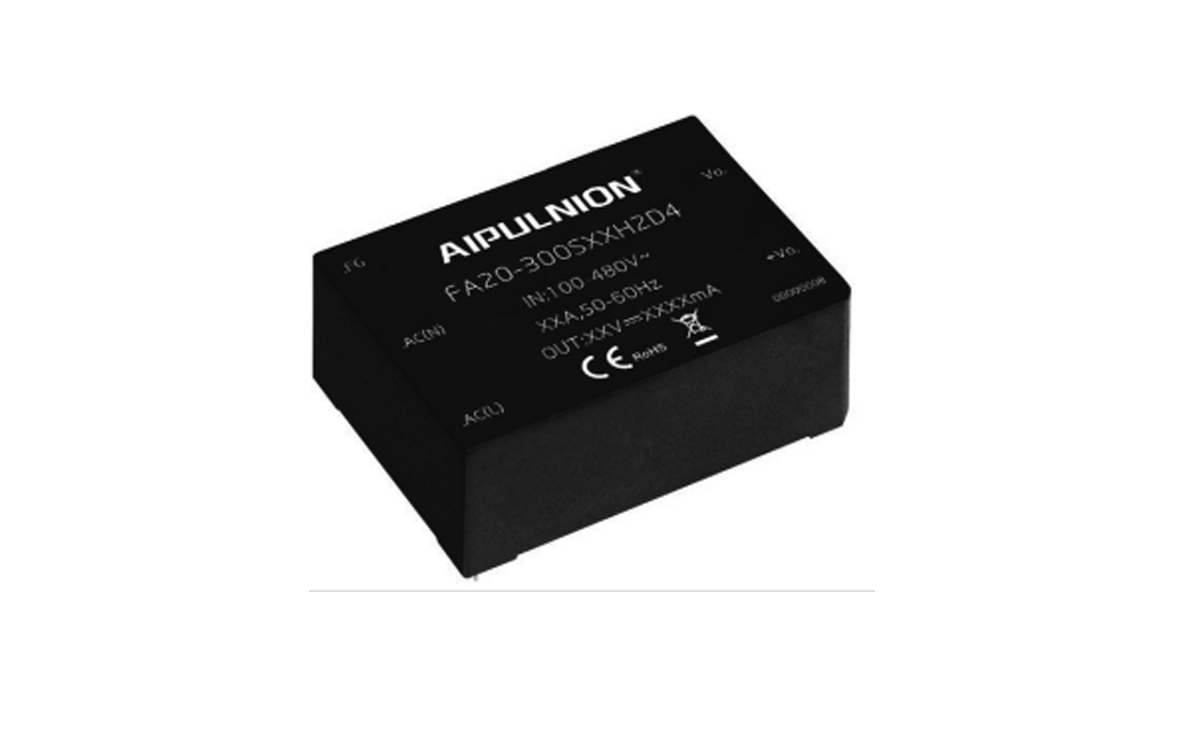

FA20-300SXXH2D4(-T)(-TS) 系列
90-528/100-745 4000/- 70.0*48.0*24.0
FA20-300S24H2D4 20 90-528/100-745 84 4000/- 70.0*48.0*24.0 CE,RoHS
FA20-300S15H2D4 20 90-528/100-745 83 4000/- 70.0*48.0*24.0 CE,RoHS
FA20-300S12H2D4 20 90-528/100-745 83 4000/- 70.0*48.0*24.0 CE,RoHS
FA20-300S05H2D4 20 90-528/100-745 78 4000/- 70.0*48.0*24.0 CE,RoHS
DA20-220SXXG2N4(-T)(-TS) 系列
85-305/120-430 4000/- 54.0*29.3*23.7
DA20-220S48G2N4 20 85-305/120-430 88 4000/- 54.0*29.3*23.7 -
DA20-220S5V2G2N4 20 85-305/120-430 84 4000/- 54.0*29.3*23.7 -
DA20-220S3V3G2N4 20 85-305/120-430 83 - 54.0*29.3*23.7 -
DA20-220S24G2N4 20 85-305/120-430 88 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S15G2N4 20 85-305/120-430 86 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S12V5G2N4 20 85-305/120-430 86 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S12G2N4 20 85-305/120-430 86 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S09G2N4 20 85-305/120-430 85 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS
DA20-220S05G2N4 20 85-305/120-430 84 4000/- 54.0*29.3*23.7 CE,CB,UL,RoHS

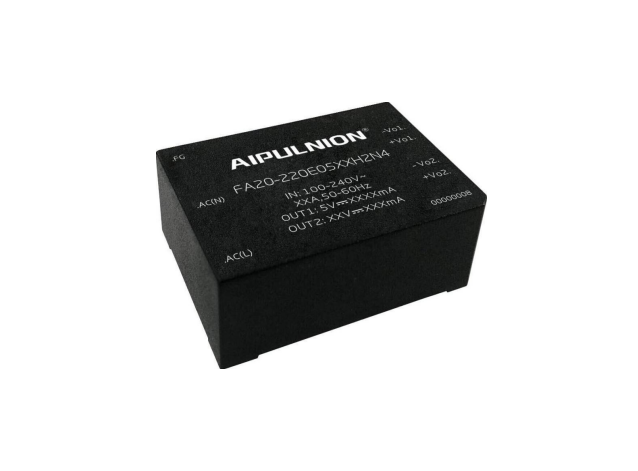

FA20-220E05XXH2N4 系列
85-265/120-370 4000/- 70.0*48.0*24.0
FA20-220E0524H2N4 20 85-265/120-370 78 4000/- 70.0*48.0*24.0 -
FA20-220E0524H2N4 20 85-265/120-370 78 4000/- 70.0*48.0*24.0 -
FA20-220E0512H2N4 20 85-265/120-370 78 4000/- 70.0*48.0*24.0 -
FA20-220E0512H2N4 20 85-265/120-370 78 4000/- 70.0*48.0*24.0 -

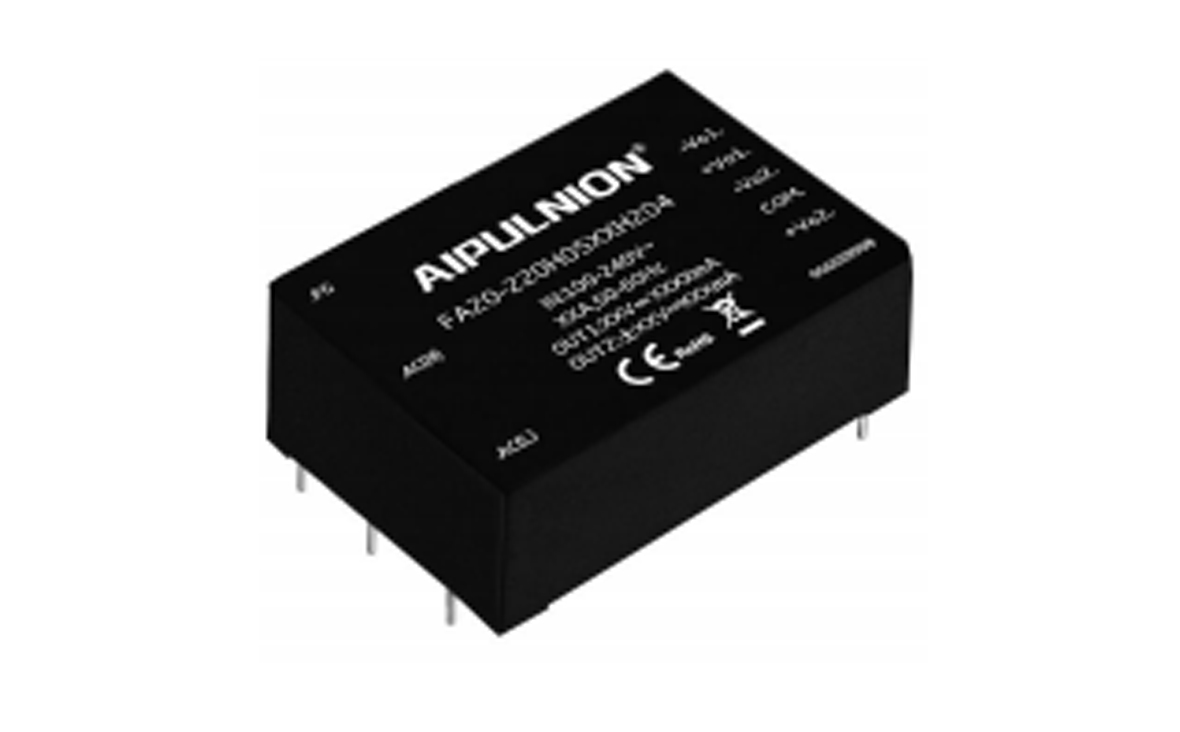

FA20-220H05XXH2D4(-T)(-TS) 系列
85-265/127-370 4000/- 70.0*48.0*24.0
FA20-220H051212H2D4 20 85-265/127-370 79 4000/- 70.0*48.0*24.0 CE,RoHS
FA20-220H051515H2D4 20 85-265/127-370 79 4000/- 70.0*48.0*24.0 CE,RoHS

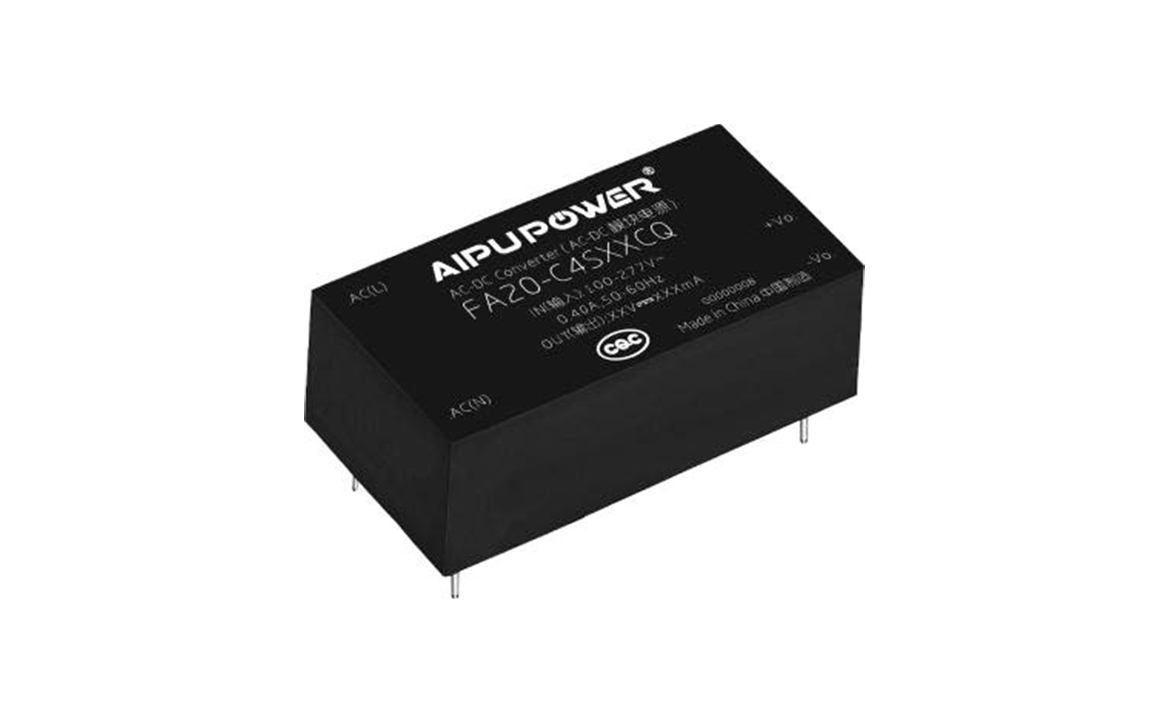

FA20-C4SXXCQ(-T)(-TS) 系列
85-305/100-430 4000/- 54.00*29.30*23.70
FA20 C4S24CQ 20 85-305/100-430 88 4000/- 54.00*29.30*23.70 -,CQC
FA20 C4S15CQ 20 85-305/100-430 86 4000/- 54.00*29.30*23.70 -,CQC
FA20 C4S12CQ 20 85-305/100-430 86 4000/- 54.00*29.30*23.70 -,CQC
FA20 C4S09CQ 20 85-305/100-430 85 4000/- 54.00*29.30*23.70 -,CQC
FA20 C4S05CQ 20 85-305/100-430 84 4000/- 54.00*29.30*23.70 -,CQC
FA20 C4S03CQ 20 85-305/100-430 83 4000/- 54.00*29.30*23.70 -,CQC
FA20-220SXXF2N5(-T)(-TS)系列
85-305/120-430 4200/- 62.0*45.0*22.5
FA20-220S05F2N5 20 85-305/120-430 77 4200/- 62.0*45.0*22.5 -
FA20-220S09F2N5 20 85-305/120-430 82 4200/- 62.0*45.0*22.5 -
FA20-220S12F2N5 20 85-305/120-430 83 4200/- 62.0*45.0*22.5 -
FA20-220S15F2N5 20 85-305/120-430 83 4200/- 62.0*45.0*22.5 -
FA20-220S24F2N5 20 85-305/120-430 84 4200/- 62.0*45.0*22.5 -
FA25-220SXXH2D4(-T)(-TS) 系列
85-305/120-430 4200/- 70.0*48.0*23.5
FA25-220S26V5H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S30H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S48H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S29H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S28H2D4 25 85-305/120-430 86 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S24H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S18H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S15H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S12H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S09H2D4 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 CE,RoHS
FA25-220S05H2D4 25 85-305/120-430 78 4200/- 70.0*48.0*23.5 CE,RoHS

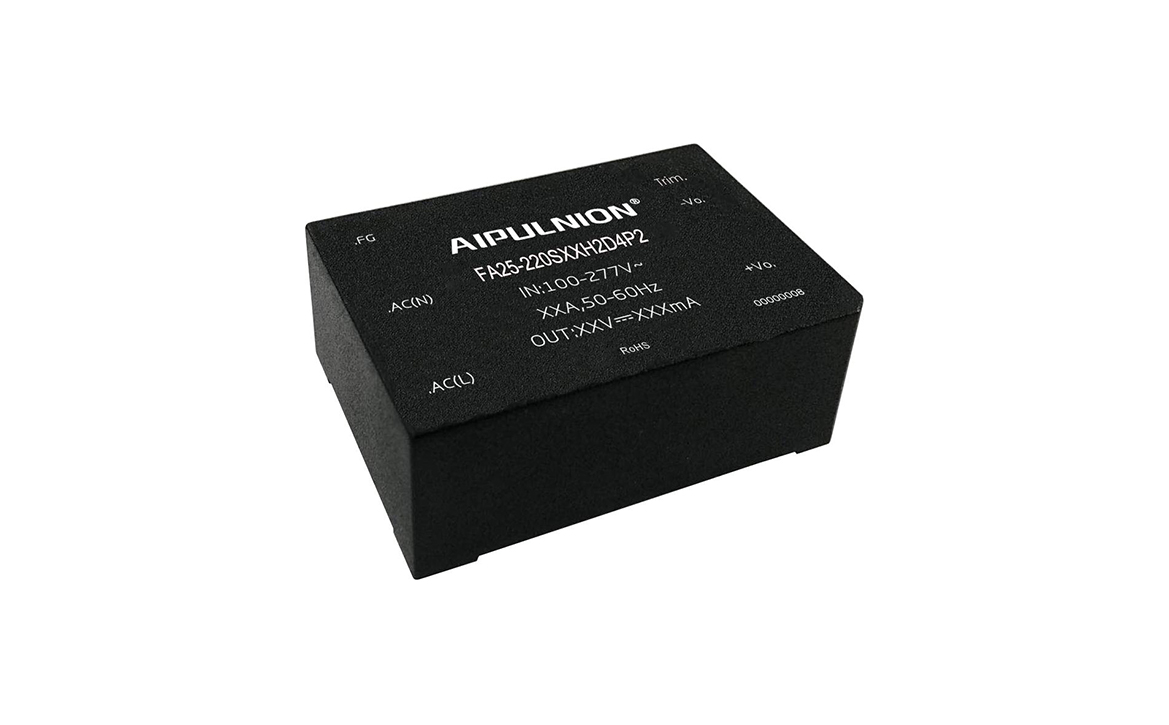

FA25-220SXXH2D4P2(-T)(-TS)系列
85-305/120-430 4200/- 70.0*48.0*23.5
FA25-220S09H2D4P2 25 85-305/120-430 84 4200/- 70.0*48.0*23.5 -
FA25-220S12H2D4P2 25 85-305/120-430 84 4200/- 70.0*48.0*23.5 -
FA25-220S15H2D4P2 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 -
FA25-220S24H2D4P2 25 85-305/120-430 85 4200/- 70.0*48.0*23.5 -

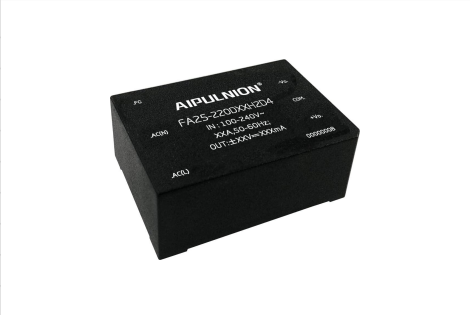

FA25-220DXXH2D4 系列
85-265/120-380 4000/- 70.0*48.0*23.5
FA25-220D15H2D4 25 85-265/120-380 83 4000/- 70.0*48.0*23.5 -
FA25-220D12H2D4 25 85-265/120-380 82 4000/- 70.0*48.0*23.5 -

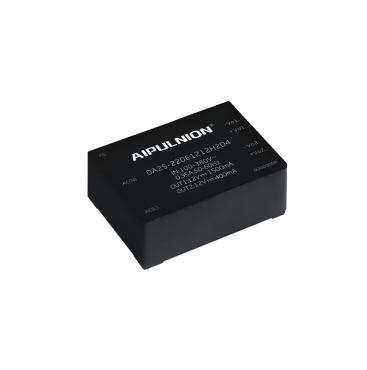

DA25-220E1212H2D4 系列
85-418/110-590 4000/- 70.0*48.0*23.5
DA25-220E1212H2D4 25 85-418/110-590 83 4000/- 70.0*48.0*23.5 -

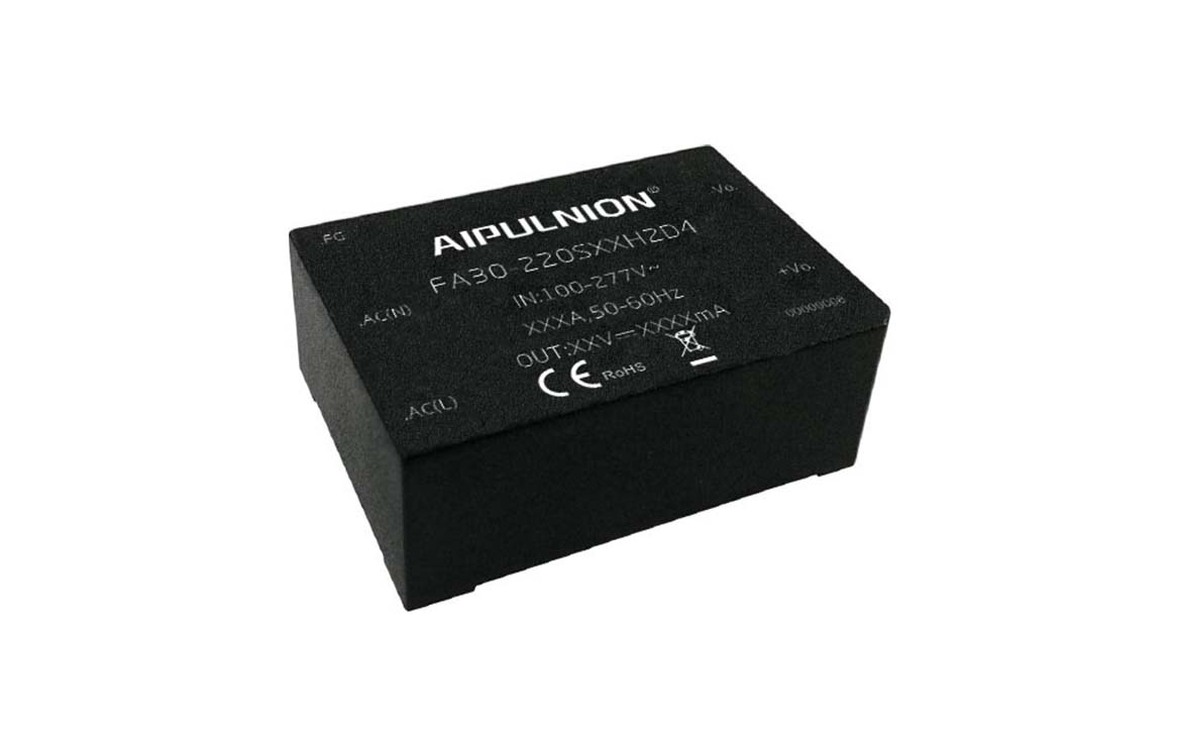

FA30-220SXXH2D4(-T)(-TS) 系列
85-305/120-430 4000/- 70.0*48.0*23.5
FA30-220S24H2D4 30 85-305/120-430 85 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S18H2D4 30 85-305/120-430 85 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S15H2D4 30 85-305/120-430 83 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S12H2D4 30 85-305/120-430 82 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S09H2D4 30 85-305/120-430 80 4000/- 70.0*48.0*23.5 CE,RoHS
FA30-220S05H2D4 30 85-305/120-430 78 4000/- 70.0*48.0*23.5 -

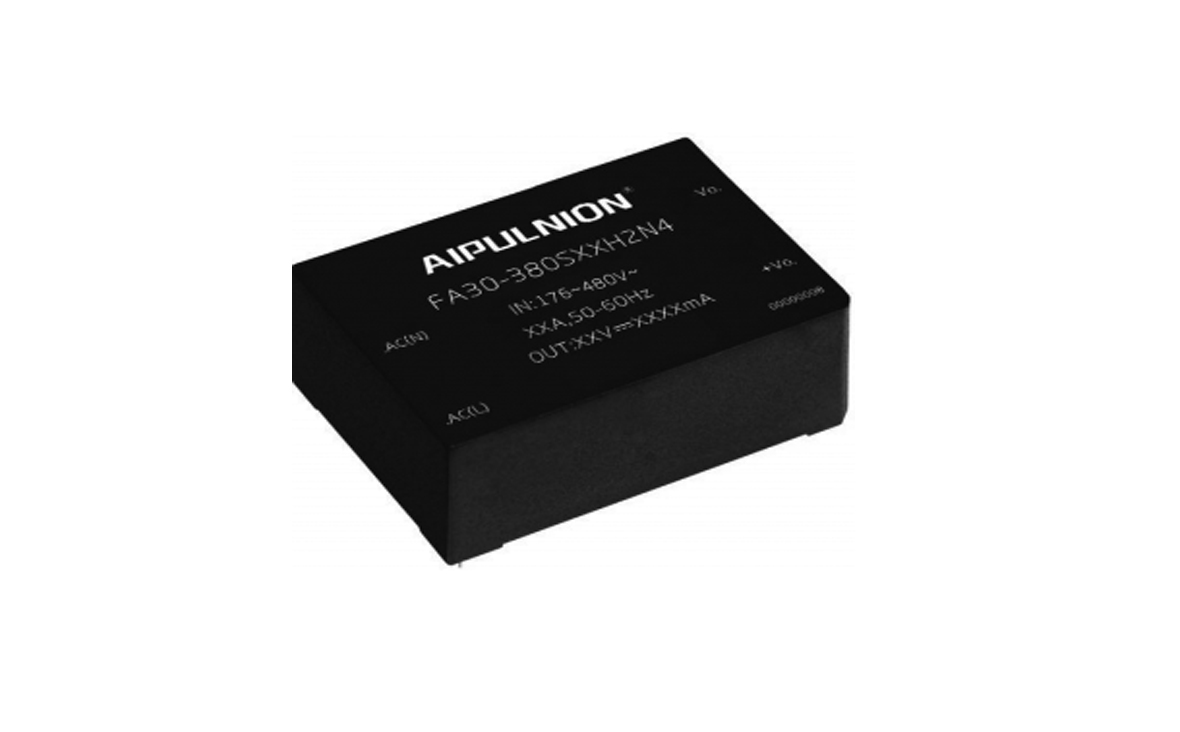

FA30-380SXXH2N4(-T)(-TS) 系列
176-528/248-745 4000/- 70.0*48.0*24.0
FA30-380S24H2N4 30 176-528/248-745 85 4000/- 70.0*48.0*24.0 -
FA30-380S15H2N4 30 176-528/248-745 82 4000/- 70.0*48.0*24.0 -
FA30-380S12H2N4 30 176-528/248-745 82 4000/- 70.0*48.0*24.0 -
FA30-380S05H2N4 30 176-528/248-745 78 4000/- 70.0*48.0*24.0 -
FA30-SXXC2 系列
85-305/120-430 4200/- 69.5*39.0*24.0
FA30-S03C2 30 85-305/120-430 86 4200/- 69.5*39.0*24.0 -
FA30-S05C2 30 85-305/120-430 86 4200/- 69.5*39.0*24.0 -
FA30-S09C2 30 85-305/120-430 88 4200/- 69.5*39.0*24.0 -
FA30-S12C2 30 85-305/120-430 90 4200/- 69.5*39.0*24.0 -
FA30-S15C2 30 85-305/120-430 90 4200/- 69.5*39.0*24.0 -
FA30-S24C2 30 85-305/120-430 88 4200/- 69.5*39.0*24.0 -
FA30-S48C2 30 85-305/120-430 88 4200/- 69.5*39.0*24.0 -
